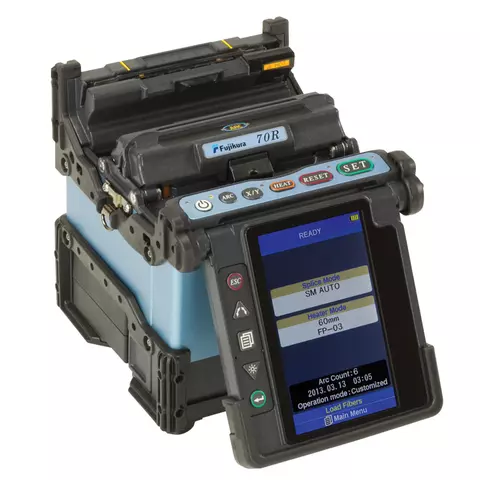

Fusion Splicer Fujikura 70R+

id: 856249
Fusion Splicer Fujikura 70R+
Overview
Description
Delivery
Payment
Warranty
Discontinued
Find substitute
Overview
Made in Japan
Rate product
13 kg 110, 220 V Warranty: 24 months
Fully robust fusion splicer for ribbon optical fibre. Features an automated wind protector and a tube heater which has been developed for quicker ribbon splicing cycles. Read more
Discontinued
Find substitute
Compare
Compare
Discontinued
Find substitute
Impossible to estimate the shipping cost

You may also like

Mass Fusion Splicer Fujikura 88R12
Add to wishlist
ID: 892877
Mass Fusion Splicer Fujikura 88R12
USD 9400.00
Add to wishlist
Add to cart
Fusion splicer designed to splice up to 12 fiber ribbon cables simultaneously. Self cladding alignment with melting surface tension. Splicing time: 11-12 sec, heat time: 13-15 sec.
Made in Japan
Availability in stock: HK
Shipping cost
ID: 892877 22 kg
Description

Fujikura 70R+ is a powerful and robust fusion splicer for ribbon optical fibre. Fujikura 70R+ features an automated wind protector and a tube heater which has been developed for quicker ribbon splicing cycles. The unit also includes a high-resolution LCD monitor, powerful Li-ion battery for longer operation time and built in videos for on-the-go training.

Features

  • Wireless connection via Bluetooth.
  • Automatic and fully programmable wind protector.
  • 11 sec. splice time, 18 sec. heating time.
  • High capacity Li-ion battery pack (110 splices).
  • On-board training and support videos.
  • Multi-functional carrying case with integrated work station.
  • Dust, rain, wind and shock resistant.

Technical Specifications

Applicable fibers SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZ/NZDS (ITU-T G.655), BI (ITU-T G.657)
Splice mode single to 12
Cladding and coating diameter single: 125 μm / 160 μm to 3 mm by fiber holder system
ribbon: 125 μm / Ribbon fiber thickness 0.25 to 0.4 mm
Cleave length 10~13 mm
Average splice loss 0.05 dB (SM), 0.02 dB (MM), 0.08 dB (DS), 0.08 dB (NZDS)
Average splice time typical 11 sec. in SM FAST mode,
15 sec. in SM AUTO mode
Splice protector 60 mm, 40 mm and Fujkura micro sleeves
Splice data storage last 2000
Fiber magnification X / Y (35X-90X magnification, automatically change depending on fiber count),
or both X and Y simultaneously
Display and camera 2 axis CMOS camera
with 4.73-inch colour LCD
Electrode life 1500 arc discharges
Power supply / battery AC 100-240 V, 50/60 Hz
4000 mAh battery
Dimensions 146 (W) x 150 (H) x 159 (D) mm
Weight 2.5 kg (including battery)

Package Contents

  • Fujikura 70R+ fusion splicer
  • ADC-18 AC adapter/battery charger
  • ACC-XX AC power cable
  • CC-30 carrying case
  • AP-01 alcohol pot
  • SD-01 screwdriver
  • SL-01 sleeve loader
  • USB-01 USB cable
  • ELCT2-20A spare electrodes
  • Q-70R/19R-E quick reference guide
