Fusion Splicer Fujikura FSM-11S

id: 835614
Made in Japan
7 kg 110, 220 V Warranty: 12 month (s)
Fusion splicer with cladding alignment with fixed V-grooves for splicing any types of optic fibers. Splicing time: 15 s, heat time: 40 s.
Discontinued
Contact
sales team
Discontinued
Contact
sales team
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Delivery
Payment
Warranty
Overview

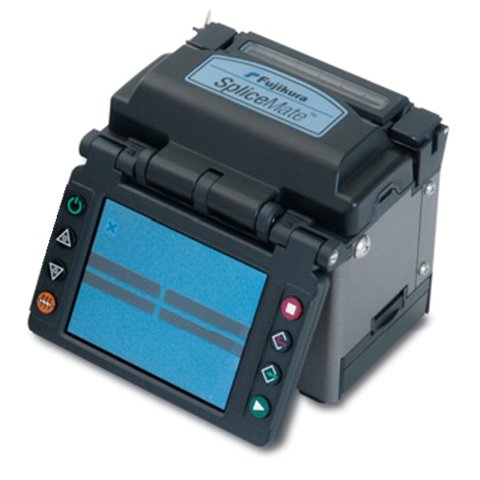

Fujikura FSM-11S SpliceMate Fusion Splicer is the most compact-size unit for fusion splicing of any types of optic fibers with cladding alignment with fixed V-grooves. The device is suitable for working in severe operation conditions and ensures operation within the temperature range from –10°C to +50°C.

Fujikura FSM-11S SpliceMate splices a fiber in 15 seconds and heats a splice sleeve in 40 seconds. The device automatically detects and splices all the main types of telecommunication optic fibers, carries out accurate splicing loss assessment, performs mechanical proof test and sleeve heating.

Features

  • Cladding alignment.
  • Actual average splice loss: 0.05 dB.
  • Splicing time: 15 s.
  • Heating time: 40 s.
  • Auto arc power adjustment:
    • electrode wear compensation, as well as RH and temperature effect compensation;
    • electrode lifetime increase;
    • operation efficiency increase: no need for repeated arc calibration;
    • splicing quality increase: splice loss decrease;
    • reliability increase: no temperature, RH and pressure sensors.
  • Operation temperature range: from –10°C to +50°C.
  • Battery power.
  • No. of splice/heating cycles using a battery: 30.
  • USB interface for PC connection.
  • 3.5-inch rotating color LCD display.
  • Good choice for PON/FTTx networks.
  • The most lightweight and compact device among fusion splicers.

Technical Specifications

Splicing
Splicing Time 15 sec (standard SM fibre)
Applicable Fibers Single-mode (SM, ITU-T G.652)
Multi-mode (MM, ITU-T G.651)
Dispersion-shifted (DS, ITU-T G.653)
Non-zero dispersion-shifted (NZDS, ITU-TG.655)
Cladding diameter 125 μm
Coating diameter 250 or 900 μm
Cleaved fiber length 10 mm
Typical Average Splice Loss 0.05 dB (SM)
0.02 dB (MM)
0.08 dB (DS)
0.08 dB (NZDS)
Splice Area Loss Introduction No
Splice Loss Assessment Yes
Return loss ≤60 dB
Splicing modes 100 (40 user adjusted and up to 60 preset)
Internal Memory up to 2000 splice results and parameters
Additional options
Mechanical Proof Test 2 N
Interface USB 1.1
Tube heater
Tube Heater built-in, 10 user adjusted and up to 20 preset heating modes
Tube Heating Time ~ 40 sec
Protection Sleeves 60 mm
40 mm
reduced size
Screen
Type LCD
Size 3.5″
Colour Yes
Viewing Yes, (2 CMOS cameras)
Viewing methods Single X or Y view
Magnification 300X
Power Supply
Adapter ADC-13 100 to 240 V AC or 10 to 15 V DC
Battery BTR-07 11.1 V DC
Battery Cycles 30 splice/heat cycles (at 25°C and activated energy saving mode)
Dimensions & Weight
W 110 mm
D 80 mm
H 100 mm
Weight 640 g (without battery)
810 g (with battery)
Operation Conditions
Temperature –10 ~ +50°C
Altitude above sea level 0 ~ 3660 m
RH 0 ~ 95%
Max. wind velocity 15 m/s / 34 mph
Storage Conditions
Temperature –40 ~ +80 °C
RH up to 95%

Package Contents

  • Fujikura FSM-11S SpliceMate Fusion Splicer Unit — 1 pc.
  • Spare electrodes ELCT2-12 — 2 pcs.
  • Battery BTR-07 — 1 pc.
  • Battery charge cord BTC-04 — 1 pc.
  • Power adapter ADC-10 — 1 pc.
  • Power cord ACC — 1 pc.
  • Fiber holders FH-50-250 — 2 pcs.
  • User manual — 1 pc.
  • Warranty service coupon — 1 pc.
  • Carrying case CC-17 — 1 pc.

Optional Items
