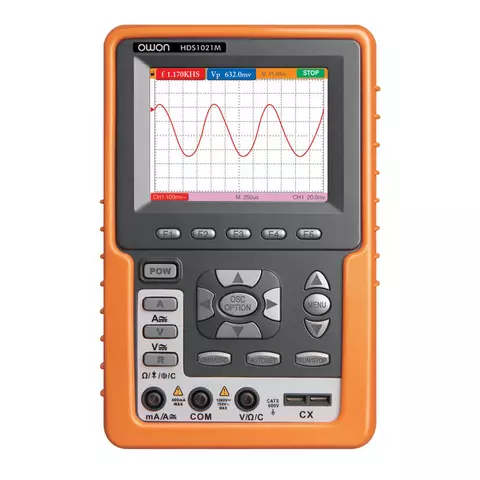

Handheld Digital Oscilloscope OWON HDS1021M

id: 856640
3 kg 110, 220 V Warranty: 12 month (s)
Single-channel lightweight handheld oscilloscope with 20 MHz bandwidth, 100 MS/s sample rate and a set of multimeter measurement functions.
Discontinued
Find substitute
Discontinued
Find substitute
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Substitution
Delivery
Payment
Warranty
Overview

OWON HDS1021M is a single-channel lightweight handheld oscilloscope with 20 MHz bandwidth and 100 MS/s sample rate. OWON HDS1021M also performs multimeter measuring functions: measures AC/DC voltage and current, resistance and capacitance.

Features

  • 3.5-inch color LCD
  • Real-time sample rate - 100 MS/s
  • Record length - 6 000 points
  • Manual- and auto-ranging multimeter modes
  • Multimeter functions:
    • DC voltage and current
    • AC voltage and current
    • Resistance
    • Capacitance

Technical Specifications

Bandwidth 20 MHz
Rise time ≤ 17.5 ns
Real-time sampling rate 100 MS/s
Vertical sensitivity 5 mV/div ~ 5 V/div
Vertical resolution 8 bit
Record length (max) 6 000 points
Trigger type Edge, Video
Waveform storage 4 waveforms
Multimeter
DC voltage 400 mV / 4 V / 400 V: ±(1±1%+5)
AC voltage 4 V / 40 V / 400 V: ±(1±3%+5)
DC current 40 mA / 400: ±(1.5%±1) / 20 A: ±(3%±3)
AC current 40 mA: ±(1.5%±3) / 400 mA: ±(2%±1) / 20 A: ±(3%±3)
Resistance 400 Ω: ±(1%±3) / 40 MΩ
Capacitance 51.2 nF - 100 μF: ±(3%±3)
General characteristics
Max.display 4000
LCD size 3.5"
Power power supply 100-240 V AC, 50/60 Hz
battery 7.4 V
Dimensions 180 × 115 × 40 mm
Weight 455 g

Package Contents

  • OWON HDS1021M digital oscilloscope module - 1 pc.
  • Probe - 1 pc.
  • Test lead - 1 pair
  • Power adaptor - 1 pc.
  • Current extend module - 1 pc.
  • Small capacitance module - 1 pc.
  • Soft bag - 1 pc.
  • USB cable - 1 pc.
  • Software CD - 1 pc.
  • User manual - 1 pc.
