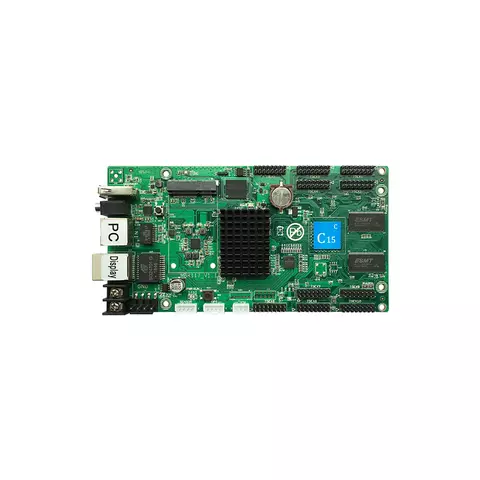

Huidu HD-C15C LED Display Module Control Card (384×320, 1024×120, 240×512, with Wi-Fi Module)

id: 890728
Huidu HD-C15C LED Display Module Control Card (384×320, 1024×120, 240×512, with Wi-Fi Module)
Overview
Description
Delivery
Payment
Warranty
USD 85.00
Notify
when in stock
Overview
0.12 kg Warranty: 12 months
This card is used to control full color LED displays via LAN/Wi-Fi. It can display text, images and video of different formats.
USD 85.00
Notify
when in stock
Add to wishlist
Compare
Compare
USD 85.00
Notify
when in stock
Impossible to estimate the shipping cost
Description

This card is used to control LED displays via LAN/Wi-Fi. It can display text, as well as videos and images of different formats. The device supports U-Disk drive connection, which, in turn, grants virtually indefinite storage memory. 3G or 4G modules can be connected to the control card for control via corresponding type of network.

Downloads

Download software

Download user manual

Read more
Description

This card is used to control LED displays via LAN/Wi-Fi. It can display text, as well as videos and images of different formats. The device supports U-Disk drive connection, which, in turn, grants virtually indefinite storage memory. 3G or 4G modules can be connected to the control card for control via corresponding type of network.

Downloads

Download software

Download user manual

Technical Specifications

LED display sizes 384×320, 1024×120, 240×512
Built-in memory 4 GB
Supported modules Full color
Supported video formats AVI, WMV, MP4, MPG, FLV, RMVB, VOB, SWF, etc.
Number of HUB inputs 10 × HUB75E
Supported sensors Temperature, humidity, brightness, IR
Connection type LAN / built-in Wi-Fi module
Voltage 4-6 V
Power <3 W
Operating temperature -40°C~80°C
