Overview
0.5 kg Warranty: 24 months
Resistance, insulation resistance and AC/DC voltage measurements. Auto ranging.
Discontinued
Find substitute
Compare
Compare
Discontinued
Find substitute
Impossible to estimate the shipping cost

You may also like

Insulation Tester UNI T UT511
Add to wishlist
Insulation Tester UNI-T UT511
USD 96.22
Add to wishlist
Add to cart
Insulation tester which is designed to measure the insulation resistance in the range from 500 kΩ to 10 GΩ with a test voltage of 100 to 1000 V.
Availability in stock: HK
Shipping cost
ID: 830018 5 kg
Measuring resistance from 0 MΩ to 20 GΩ. Test voltages may be selected between 500 V / 1000 V / 2500 V.
Bestseller
Availability in stock: HK
Shipping cost
ID: 854601 1.5 kg
Description

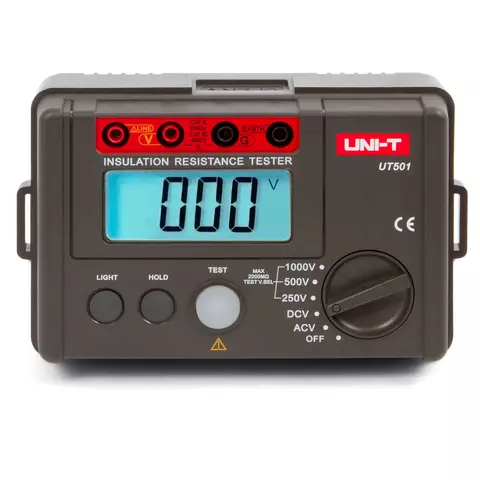

This UNI-T UT501 insulation tester measures resistance, insulation resistance and AC/DC voltage.

UNI-T UT501 Insulation Tester User Manuals

Download UNI-T UT501 Insulation tester user manual

UNI-T UT501 Insulation Tester Features

  • Functions:
    • insulation resistance
    • resistance
    • DC voltage
    • AC voltage
  • Auto ranging
  • Alarm light display and buzzer
  • Low battery indication

UNI-T UT501 Insulation Tester Technical Specifications

Display LCD with backlight, 70.6 × 34 mm
Output voltage Range 250 V / 500 V / 1000 V
Accuracy ±10%
Current Range 250 V 1 mA
500 V
1000 V
Accuracy ±10%
Short circuit current
Insulation resistance measurement Range 250 V 3 MΩ to 2000 MΩ
500 V
1000 V 3 MΩ to 2 GΩ
Accuracy ±3%+5
Voltage measurement 1000 V DC, 750 V AC
Accuracy ±2%+3
Power 6 × 1.5 V battery (R14)
Dimensions (H × W × D), mm 150 × 100 × 71
Weight, kg 0.5

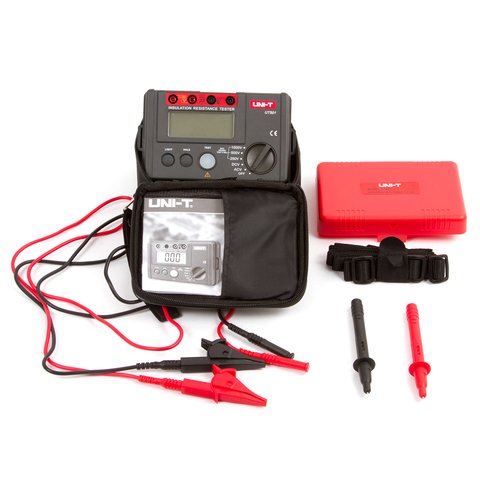

UNI-T UT501 Insulation Tester Package

  • Megaohmmeter UNI-T UT501 — 1 pc.
  • Test leads — 1 set
  • Test probes — 1 set
  • Alligator clip — 1 pc.
  • Carrying bag — 1 pc.
  • Strap — 1 pc.
  • 1.5 V battery (LR14) — 6 pcs.
  • User manual — 1 pc.
Read more
Description

This UNI-T UT501 insulation tester measures resistance, insulation resistance and AC/DC voltage.

UNI-T UT501 Insulation Tester User Manuals

Download UNI-T UT501 Insulation tester user manual

UNI-T UT501 Insulation Tester Features

  • Functions:
    • insulation resistance
    • resistance
    • DC voltage
    • AC voltage
  • Auto ranging
  • Alarm light display and buzzer
  • Low battery indication

UNI-T UT501 Insulation Tester Technical Specifications

Display LCD with backlight, 70.6 × 34 mm
Output voltage Range 250 V / 500 V / 1000 V
Accuracy ±10%
Current Range 250 V 1 mA
500 V
1000 V
Accuracy ±10%
Short circuit current <2 mA
Insulation resistance measurement Range 250 V 3 MΩ to 2000 MΩ
500 V
1000 V 3 MΩ to 2 GΩ
Accuracy ±3%+5
Voltage measurement 1000 V DC, 750 V AC
Accuracy ±2%+3
Power 6 × 1.5 V battery (R14)
Dimensions (H × W × D), mm 150 × 100 × 71
Weight, kg 0.5

UNI-T UT501 Insulation Tester Package

  • Megaohmmeter UNI-T UT501 — 1 pc.
  • Test leads — 1 set
  • Test probes — 1 set
  • Alligator clip — 1 pc.
  • Carrying bag — 1 pc.
  • Strap — 1 pc.
  • 1.5 V battery (LR14) — 6 pcs.
  • User manual — 1 pc.
Specifications
Type
  • digital
Max. measurable resistance
  • 2000 MOhm
Max. voltage
  • 1000 V
