Overview
5 kg 220 V Warranty: 24 months
Insulation tester which is designed to measure the insulation resistance in the range from 0.5 MΩ to 1 000 000 MΩ with a test voltage of 500 to 5000 V.
Discontinued
Contact
sales team
Compare
Compare
Discontinued
Contact
sales team
Impossible to estimate the shipping cost
Description

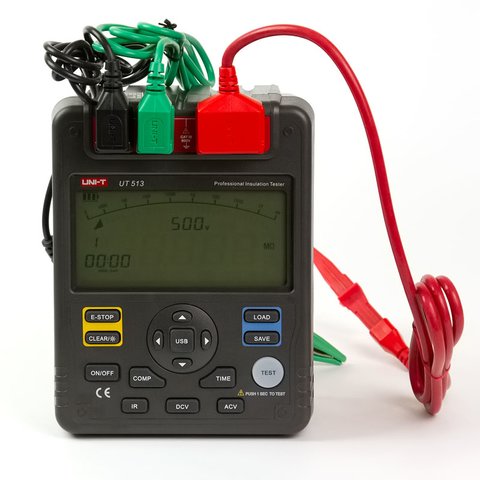

UNI-T UT513 is a insulation tester which is designed to measure the insulation resistance in the range from 0.5 MΩ to 1 000 000 MΩ with a test voltage of 500 to 5000 V.

User Manual

Download UNI-T UT513 Insulation Tester User Manual

Features

  • Measurement functions:
    • low resistance
    • insulation resistance
    • DC voltage
    • AC voltage
  • Auto ranging
  • Sleep mode
  • Low battery indication

Technical Specifications

Display LCD with backlight, 123 × 58 mm
Insulation resistance measurement Range 500 kΩ ~ 10 GΩ
1 MΩ ~ 1000 GΩ
Accuracy ±5%+5
Voltage measurement 100 V / 250 V / 500 V / 1000 V
1000 V / 1500 V / 2500 V / 5000 V
Accuracy 0~20%
Low resistance 1000 Ω
Power 1.5 V alkaline battery (8 pcs.)
Dimensions (H × W × D), mm 202 × 155 × 94
Weight, kg 2.0

Package Contents

  • Insulation tester UNI-T UT513 (1 pc.)

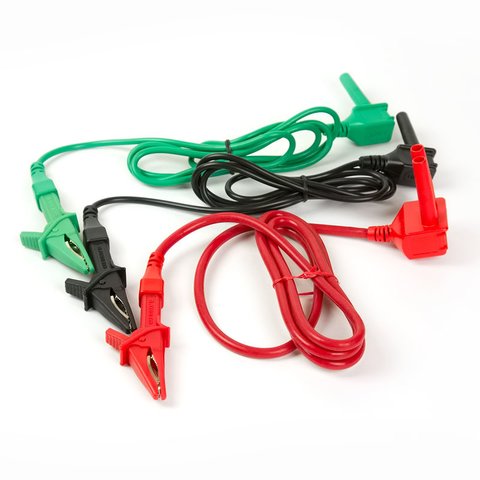

  • One plug test lead (black) (1 pc.)
  • One plug test lead (green) (1 pc.)
  • Two plugs test lead (red) (1 pc.)
  • Tool box (1 pc.)
  • User manual (1 pc.)

Note! Batteries are not included in the package.

Read more
Description

UNI-T UT513 is a insulation tester which is designed to measure the insulation resistance in the range from 0.5 MΩ to 1 000 000 MΩ with a test voltage of 500 to 5000 V.

User Manual

Download UNI-T UT513 Insulation Tester User Manual

Features

  • Measurement functions:
    • low resistance
    • insulation resistance
    • DC voltage
    • AC voltage
  • Auto ranging
  • Sleep mode
  • Low battery indication

Technical Specifications

Display LCD with backlight, 123 × 58 mm
Insulation resistance measurement Range 500 kΩ ~ 10 GΩ
1 MΩ ~ 1000 GΩ
Accuracy ±5%+5
Voltage measurement 100 V / 250 V / 500 V / 1000 V
1000 V / 1500 V / 2500 V / 5000 V
Accuracy 0~20%
Low resistance 1000 Ω
Power 1.5 V alkaline battery (8 pcs.)
Dimensions (H × W × D), mm 202 × 155 × 94
Weight, kg 2.0

Package Contents

  • Insulation tester UNI-T UT513 (1 pc.)
  • One plug test lead (black) (1 pc.)
  • One plug test lead (green) (1 pc.)
  • Two plugs test lead (red) (1 pc.)
  • Tool box (1 pc.)
  • User manual (1 pc.)

Note! Batteries are not included in the package.

Specifications
Type
  • digital
Max. measurable resistance
  • 1 000 000 MOm
Max. voltage
  • 5000 V
