Overview
0.525 kg Warranty: 24 months
A digital LCR meter for resistance and inductance measurements, and for continuity, diode and transistor tests.
Discontinued
Find substitute
Compare
Compare
Discontinued
Find substitute
Impossible to estimate the shipping cost

You may also like

LCR Meter UNI T UT603
Bestseller
Add to wishlist
LCR Meter UNI-T UT603
USD 39.00
Add to wishlist
Add to cart
A digital LCR meter for resistance, capacitance, inductance measurements, and for continuity, diode and transistor tests.
Bestseller
Availability in stock: HK
Shipping cost
ID: 819447 0.53 kg
Multifunctional Electronic Component Tester FNIRSI
Add to wishlist
Multifunctional Electronic Component Tester FNIRSI
USD 14.00
Add to wishlist
Add to cart
Device designed for automatic detection of NPN and PNP transistors, N-channel and P-channel MOSFET, diodes, thyristors, resistors, capacitors and other devices.
Availability in stock: HK
Shipping cost
ID: 895992 0.3 kg
Description

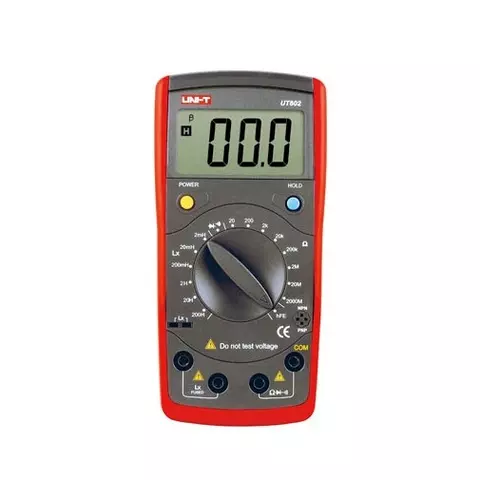

This UNI-T UT602 digital LCR meter measures resistance and inductance, and tests continuity, diodes and transistors.

UNI-T UT602 LCR Meter User Manuals

Download UNI-T UT602 LCR meter user manual

UNI-T UT602 LCR Meter Features

  • Functions:
    • resistance
    • inductance
    • continuity test (with buzzer)
    • diode test
    • transistor test
  • Manual ranging
  • Data hold
  • Low battery indication

UNI-T UT602 LCR Meter Technical Specifications

Display 3½ (1999) digit LCD, 61 × 32 mm
Resistance, Ω range 20 Ω / 200 Ω / 2 kΩ / 20kΩ / 200 kΩ / 2 MΩ / 20 MΩ / 200 MΩ / 2000 MΩ
accuracy ±(0.8%+1)
Inductance, H range 2 mH / 20 mH / 200 mH / 2 H / 20 H / 200 H
accuracy ±(2%+8)
Sampling rate 2-3 ×/s
Power 9 V battery: NEDA 1604, 6F22 or 006P
Dimensions (H × W × D), mm 172 × 83 × 38
Weight, g 312

UNI-T UT602 LCR Meter Package Contents

  • Multimeter UT602
  • Test clip
  • Holster
  • Battery
  • Manual
Read more
Description

This UNI-T UT602 digital LCR meter measures resistance and inductance, and tests continuity, diodes and transistors.

UNI-T UT602 LCR Meter User Manuals

Download UNI-T UT602 LCR meter user manual

UNI-T UT602 LCR Meter Features

  • Functions:
    • resistance
    • inductance
    • continuity test (with buzzer)
    • diode test
    • transistor test
  • Manual ranging
  • Data hold
  • Low battery indication

UNI-T UT602 LCR Meter Technical Specifications

Display 3½ (1999) digit LCD, 61 × 32 mm
Resistance, Ω range 20 Ω / 200 Ω / 2 kΩ / 20kΩ / 200 kΩ / 2 MΩ / 20 MΩ / 200 MΩ / 2000 MΩ
accuracy ±(0.8%+1)
Inductance, H range 2 mH / 20 mH / 200 mH / 2 H / 20 H / 200 H
accuracy ±(2%+8)
Sampling rate 2-3 ×/s
Power 9 V battery: NEDA 1604, 6F22 or 006P
Dimensions (H × W × D), mm 172 × 83 × 38
Weight, g 312

UNI-T UT602 LCR Meter Package Contents

  • Multimeter UT602
  • Test clip
  • Holster
  • Battery
  • Manual
