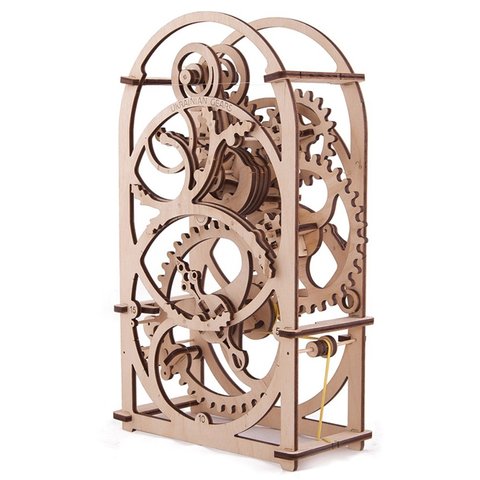

Mechanical 3D Puzzle UGEARS Timer

id: 857935
0.6 kg
Construction set to assemble a 20-minute timer with an alarm bell. If you rotate the hand and lower the lever, the countdown will start. Both the second and minute hands operate. Force is transmitted from an ordinary rubber band. Made in Ukraine.
USD 39.90
Notify
when in stock
USD 39.90
Notify
when in stock
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Video
Delivery
Payment
Warranty
Overview

UGEARS Timer is a mechanical 3D puzzle, a self-assembly model with no glue or any special tools (the parts are ready-made and can be simply removed from the board). To be assembled according to the manual.

Features

  • No glue or any hand tools needed for model assembly - the parts are ready-made and can be simply removed from the board and assembled together.
  • 20-minute timer with an alarm bell.
  • Having assembled the model, you may lift the lever and set the timer for the desired time.
  • If you rotate the hand and lower the lever, the countdown will start.
  • Both the second and minute hands operate.
  • Force is transmitted from an ordinary rubber band.
  • The model contains a unique roller pendulum and a uniform motion self-adjustment system.

Technical Specifications

Material plywood
Manuals EN
Model size,  l×w×h 175×85×256 mm
Package size 37×17×3 cm

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Model Assembly Tips

If you hold the board with its front side directed to you, it is better to remove the parts by pulling them. In this case, if a burr is pulled together with a part, it will make a pit in the board, not in the part. The best solution is to incise the hangers with a knife.

If you have difficulties in inserting a toothpick in the assembled gearwheel, rub the toothpick with a candle.

You may also lubricate all the projecting axes of the gearwheels before installing them on the frame. In this case the friction during rotation will be minimal.

Note: do not lubricate the parts of pendulum connection with a candle – two projecting sticks in the tractor or timer. In this case the pendulum will not swing but skid.

Try to remove big burrs on the gearwheels, if any. The motion of some models is very delicate, and they may hinder it.

If any gearwheel creaks or squeaks, lubricate it with a regular candle: paraffin or wax. If the plywood edge is too resinous and some teeth tend to seize, which happens quite rarely, lubricate the gearwheel in the same manner.

3D Puzzle

Additional Information

Warning: the construction set contains tiny details.

Does not contain hazardous substance. Keep dry.

3D Puzzle

3D Puzzle

3D Puzzle
Specifications
Age
  • 8-13 years
  • 14+ years
Type
  • DIY
  • mechanical
  • wooden
Skills
  • logic
  • engineering
  • creative thinking
Number of items
  • 100 - 199
