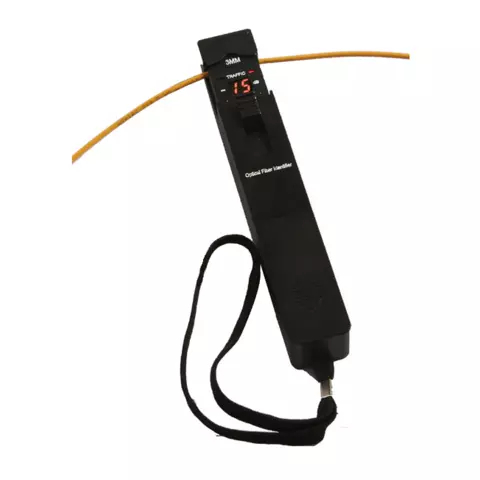

Optical Fiber Identifier GO-3306A

id: 840456
1.2 kg Warranty: 12 month (s)
Fiber identifier that detecs signal in optical fiber with 270 Hz, 1 kHz and 2 kHz frequency, equipped with optical power meter.
Discontinued
Contact
sales team
Discontinued
Contact
sales team
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Delivery
Payment
Warranty
Overview

GO-3306A is a optical fiber identifier that detecs signal in optical fiber with no interruption to signal transmission, with 270 Hz, 1 kHz and 2 kHz frequency. GO-3306A equipped with optical power meter.

Optical Fiber Identifier GO-3306A Features

  • Easy access to the target fiber in narrow space
  • Wide range optical power meter
  • Easy to replace adaptors to match various optical cables
  • Capability for weak tone signal detection over strong traffic signal
  • Durable metal housing and quality construction

Optical Fiber Identifier GO-3306A Technical Specifications

Adapter types
  • Ø 0.25 (applicable for bare fiber)
  • Ø 0.9 (applicable for Ø 0.9 cable )
  • Ø 2.0 (applicable for Ø 2.0 cable )
  • Ø 3.0 (applicable for Ø 3.0 cable )
Wavelength range 0.8 to 1.7 µm
Detectable signal CW, 270 Hz (±5%),1 kHz (±5%),2 kHz (±5%)
Optical power reading -50 ~ +0 dBm
Signal direction left and right
Power supply 9 V battery
Dimensions 30 × 195 × 27 mm
Weight 235 g

Optical Fiber Identifier GO-3306A Package Contents

  • GO-3306A optical fiber identifier (1 pc.)
  • Adapters (4 pcs.)
  • Battery (1 pc.)
  • Soft carrying case (1 pc.)
  • User manual (1 pc.)
