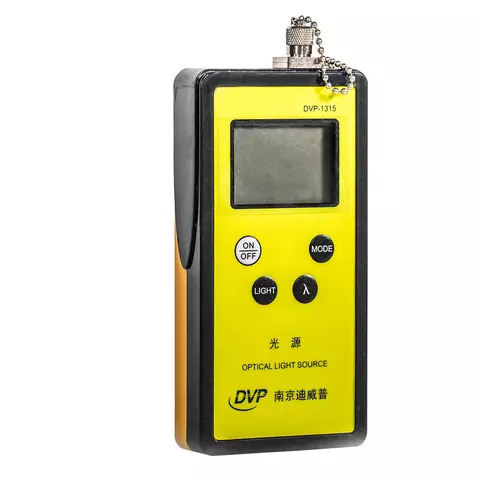

Optical Laser Source DVP-1315
id: 836779
Optical Laser Source DVP-1315
Overview
Description
Delivery
Payment
Warranty
Discontinued
Overview
0.5 kg Warranty: 12 months
Compact laser source for fiber loss testing, optical fiber network installation, testing and maintenance. Used for LAN, FDD, ATM networks, communication networks and CATV networks. Read more
Discontinued
Description
DVP-1315 Optical Laser Source is used for fiber loss testing, optical fiber network installation, testing and maintenance. DVP-1315 is a good choice for working with LAN, FDD, ATM networks, communication networks and CATV networks.
Features
- High output power.
- Stable and reliable.
- CW or MOD output.
- MOD frequency: 270 Hz / 1 KHz / 2 KHz.
- Compact & lightweight.
- Battery power supply.
Application
- LAN, FDD, ATM networks.
- Communication networks.
- CATV networks.
Technical Specifications
| Emitter type | SM LD |
| Wavelength | 1310 nm / 1550 nm ±30 nm |
| Stability | ±0.1 dB/h |
| Output | ≥ 0 dBm |
| Interface | FC (standard) | General Characteristics |
|---|---|
| Power | 2 AA battery (Standby Time > 24H) |
| Operation environment | –15 ~ +55 °C; 0~95% (no condensation) |
| Storage environment | –40 ~ +70 °C; 0~95% (no condensation) |
| Size | 62 × 22 × 110 mm |
| Weight | 100 g |
Package Contents
- Optical Laser Source DVP-1315 — 1 pc.
