Description

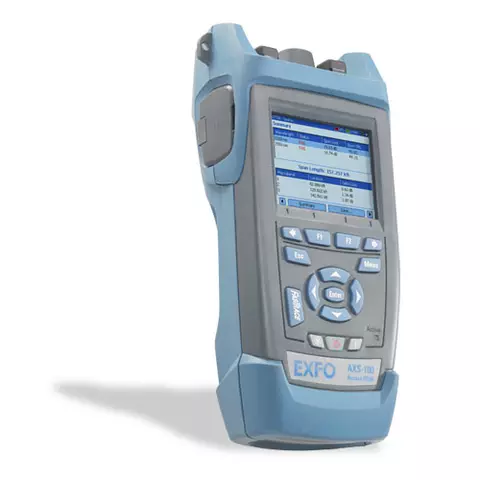

EXFO AXS-100 OTDR is a fully-functional handheld mini-reflectometer designed for single-mode troubleshooting of access/FTTx, as well as for local network testing. The device is characterized by a high dynamic range and short dead zone, as well as a function of Pass/Fail analysis.
EXFO AXS-100-023B Optical Time Domain Reflectometer Features
- Compact and lightweight handheld device.
- Wavelength: 1310/1550 nm (single-mode).
- Dynamic range: 29/28 dB.
- Short Dead Zone: 2.5 m.
- Pass/Fail analysis.
- Battery power supply, 8 hours battery life.
- Large internal memory (up to 500 results).
- USB interface for data transfer.
- Transflective color display for clear viewing of results under bright sunlight.
- Laser safety: 21 CFR 1040.10; IEC 60825-1:2007.
- Complete test set with additional options: power meter, visual fault locator (VFL), fiber inspection probe, printer and IP testing.
EXFO AXS-100-023B Optical Time Domain Reflectometer User Manual
Download EXFO AXS-100 Optical Time Domain Reflectometer User Manual.
EXFO AXS-100-023B Optical Time Domain Reflectometer Technical Specifications
| Optical Time Domain Reflectometer | ||
|---|---|---|
| Applicable fiber | Single-mode | |
| Wavelength | 1310/1550 nm | |
| Dynamic range | 29/28 dB | |
| Event dead zone | 2.5 m | |
| Attenuation dead zone | 11 m (typ.) @ 1310 nm, 12 m (typ.) @ 1550 nm | |
| Distance range | 0.65 to 160 km | |
| Pulse width | 10, 30, 100, 275, 1000, 2500, 10 000 ns | |
| Sampling resolution | 0.16 to 5 m | |
| Sampling Points | Up to 30 000 | |
| Linearity | ±0.05 dB/dB | |
| Loss threshold | 0.05 dB | |
| Loss resolution | 0.01 dB | |
| Typical real-time refresh | 2 Hz | |
| Data Storage | ||
| Storage Capacity | Internal: 500 traces; External: USB | |
| General | ||
| Display | color LCD | |
| Power supply | Li-ion battery power adapter |
|
| Battery operation | 8 hours | |
| Interface | USB | |
| Operating Temperature | –18 °C to 50 °C (14 °F to 122 °F) | |
| Size | 250 × 125 × 75 mm | |
| Weight | 1 kg (2.2 lb) | |
EXFO AXS-100-023B Optical Time Domain Reflectometer Package Contents
- Optical Time Domain Reflectometer Unit (1 pc.)
- Battery (1 pc.)
- Power adapter (1 pc.)
- USB cable (1 pc.)
- User Manual (1 pc.)
- CD with Software (1 pc.)
