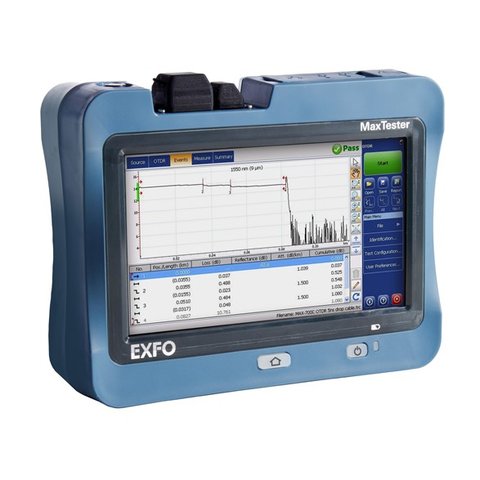

Optical Time Domain Reflectometer EXFO MAX-720C-SM1

id: 897776
Made in Canada
6.5 kg
Availability in stock: HK
Wavelength: 1310/1550 nm. Dynamic range: 36/35 dB. Event dead zone: 0.7 m. Attenuation dead zone: 3 m.
USD 3299.00
Add to cart
USD 3299.00
Add to cart
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Note! This item is shipped within 7 working days.
Overview
Specifications
Delivery
Payment
Warranty
Overview

EXFO MAX-720C-SM1 is a powerful lightweight handy OTDR with 7-inch outdoor-enhanced touchscreen display, tablet-inspired design, 12-hour battery operation, rugged design for outdoor operation.

EXFO MAX-720C is iOLM-ready: intelligent and dynamic application that turns complex OTDR trace analysis into a one-touch task

Features

  • Handy, lightweight, powerful, tablet-inspired design.
  • Wavelength: 1310/1550 nm.
  • Test fiber type: SM (singlemode).
  • 7-inch, outdoor-enhanced touchscreen.
  • 12-hour autonomous operation.
  • Dynamic range of up to 36/35 dB.
  • Fully featured and integrated field test solution.

Technical Specifications

Wavelength 1310 ± 20 nm, 1550 ± 20 nm
SM live port built-in filter 1625 nm highpass >1595 nm
isolation >50 dB from 1270 nm to 1585 nm
Dynamic range 36/35 dB
Event dead zone 0.7 m
Attenuation dead zone 3 m
PON dead zone 35 m
Distance range 0.1-260 km
Pulse width 3-20 000 ns
Launch conditions EF-compliant
Linearity ±0,03 dB
Loss threshold 0.01 dB
Loss resolution 0.001 dB
Sampling resolution 0.04 to 10 m
Sampling points up to 256 000
Distance uncertainty ±(0.75 m + 0.005 % × distance + sampling resolution)
Measurement time user-defined (60 minutes max.)
Reflectance accuracy ±2 dB
Typical real-time refresh 4 Hz
Display 7-in (178-mm) outdoor-enhanced touchscreen, 800 × 480 TFT
Interfaces Two USB 2.0 ports
RJ45 LAN 10/100 Mbit/s
Storage 6 GB internal memory (20 000 OTDR traces, typical)
Batteries rechargeable lithium-polymer battery (12 hours of operation)
Power supply power supply AC/DC adapter, input 100-240 VAC, 50-60 Hz
Operating temperature –10 °C to 50 °C (14 °F to 122 °F)
Storage temperature –40 °C to 70 °C (–40 °F to 158 °F)
Relative humidity 0 % to 95 % non-condensing
Dimensions (H × W × D) 166 mm × 200 mm × 68 mm
Weight (with battery) 1.5 kg

User Manual

PDF  Download EXFO MAX-720C-SM1 User Manual.

Spec Sheet

PDF  Download EXFO MAX-720C-SM1 Spec Sheet.

Package Contents

  • Optical Time Domain Reflectometer EXFO MAX-720C-SM1 — 1 pc.
  • Hand Strap — 1 pc.
  • Battery — 1 pc.
  • 20 W Power Supply — 1 pc.
  • Soft Carrying Case — 1 pc.
  • Stylus — 1 pc.
  • Calibration Certificate — 1 pc.
  • CD — 1 pc.
Specifications
Wave length
  • 1310 nm
  • 1550 nm
Fiber type
  • singlemode
