Oscilloscope Probe Pro'sKit 6HP-9150
id: 839704
Oscilloscope Probe Pro'sKit 6HP-9150
Overview
Description
Specifications
Delivery
Payment
Warranty
Discontinued
Overview
Oscilloscope measuring probe (150 MHz, 600 V). Read more
Discontinued
Description
Pro'sKit 6HP-9150 is an oscilloscope measuring probe (600 V).
Pro'sKit 6HP-9150 – Features
- Switchable ×1 / ×10 attenuation with reference switch positions.
- Replaceable cable probe head tip and ground lead.
- Max. input voltage – 600 V (DC-peak, AC).
Pro'sKit 6HP-9150 – Technical Specifications
| Attenuation | × 1 | × 10 |
|---|---|---|
| Input impedance | 1 MΩ / 47 pF | 10 MΩ / 15 pF |
| Bandwidth | 6 MHz | 150 MHz |
| Rise time | 58 ns | 2.3 ns |
| Max. input voltage | 600 V | |
| Compensation range | – | 10-35 pF |

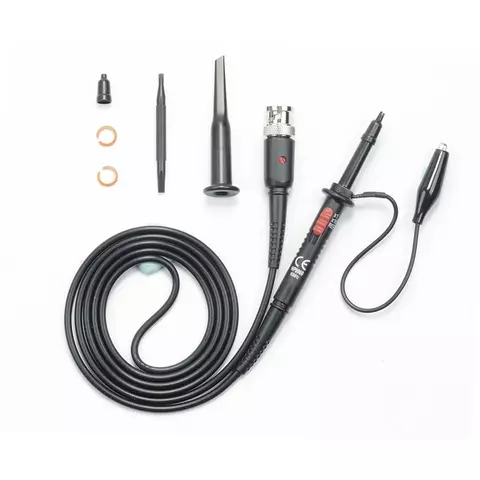

Pro'sKit 6HP-9150 – Package Contents
- Measuring probe Pro'sKit 6HP-9150 – 1 pc.
- BNC adapter – 1 pc.
- IC tip – 1 pc.
- Insulating tip – 1 pc.
- Trimming tool – 1 pc.
Specifications
| Test Lead for Oscilloscope is compatible with |
|
| Bandwidth |
|
| Max. input voltage |
|
