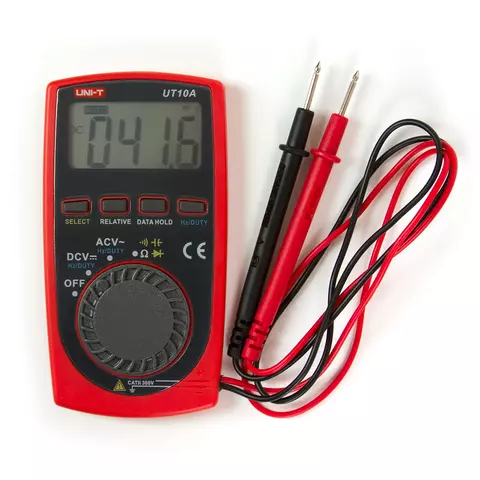

Pocket Digital Multimeter UNI-T UT10A

id: 830011
Pocket Digital Multimeter UNI-T UT10A
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Discontinued
Find substitute
Overview
0.13 kg Warranty: 24 months
Pocket digital multimeter which measures AC/DC voltage, resistance, capacity, frequency and can be used for diodes and continuity tests.
Discontinued
Find substitute
Compare
Compare
Discontinued
Find substitute
Impossible to estimate the shipping cost

You may also like

Pocket Digital Multimeter Accta AT 110
New
Add to wishlist
Pocket Digital Multimeter Accta AT-110
USD 13.00
Add to wishlist
Add to cart
Auto-ranging True RMS multimeter designed to test diodes and measure DC/AC voltage, duty cycle, resistance, capacitance, and frequency.
New
Availability in stock: HK
Shipping cost
ID: 891573 0.16 kg
Digital Multimeter UNI T UT120C
Add to wishlist
Digital Multimeter UNI-T UT120C
USD 16.95
Add to wishlist
Add to cart
Palm-size digital multimeter for measuring AC/DC voltage, AC/DC current, resistance, capacitance, frequency, as well as diode and continuity tests. Data hold, auto power-off, REL measurements.
Availability in stock: HK
Shipping cost
ID: 847049 0.5 kg
Digital Multimeter Accta AT 130
New
Add to wishlist
Digital Multimeter Accta AT-130
USD 11.00
Add to wishlist
Add to cart
A digital multimeter for DC current and AC/DC voltage, and resistance measurements, as well as diode and continuity tests. Manual range selection.
New
Availability in stock: HK
Shipping cost
ID: 891500 0.3 kg
Pocket Digital Multimeter UNI T UT125C
Bestseller
Add to wishlist
Pocket Digital Multimeter UNI-T UT125C
USD 16.32
Add to wishlist
Add to cart
The multimeter with 4000 display counts and overload protection. It is an ideal tool for measuring AC/DC voltage and current, resistance, capacitance, frequency, diode and continuity.
Bestseller
Availability in stock: HK
Shipping cost
ID: 883712 0.25 kg
Digital Multimeter UNI T UT120A
Add to wishlist
Digital Multimeter UNI-T UT120A
USD 13.35
Add to wishlist
Add to cart
Palm-size digital multimeter for measuring AC/DC voltage, resistance, frequency, as well as diode and continuity tests. Data hold, auto power-off, REL measurements.
Availability in stock: HK
Shipping cost
ID: 847050 0.5 kg
Description

This UNI-T UT10A pocket digital multimeter is designed for measuring AC/DC voltage, resistance, frequency, capacity and can be used for diodes and continuity tests.

UNI-T UT10A Pocket Digital Multimeter User Manuals

Download UNI-T UT10A Pocket Digital Multimeter User Manual

UNI-T UT10A Pocket Digital Multimeter Features

  • Measurement functions:
    • AC/DC voltage
    • resistance
    • frequency
    • continuity test
    • diode test
    • capacitance measurement
  • Relative measurement mode
  • Data Hold
  • Low battery indication

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

UNI-T UT10A Pocket Digital Multimeter Technical Specifications

Display 3999 digit LCD, 43 × 22 mm
DC voltage Range 400 mV / 4 V / 40 V / 300 V
Accuracy ±(0.8%+1)
AC voltage Range 4 V / 40 V / 300 V
Accuracy ±(1.2%+3)
Resistance Range 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ
Accuracy ±(1%+2)
Capacitance Range 4nF / 40nF / 400nF / 40µF / 40µF/ 200µF
Accuracy ±(4%+3)
Frequency Range 10 Hz / 100 kHz
Accuracy ±(0.5%+3)
Power 3 V Button Battery (CR2032)
Dimensions 58 x 108 x 12 mm
Weight 0.062 kg

UNI-T UT10A Pocket Digital Multimeter Package Contains

  • Multimeter UNI-T UT10A (1 pc.)
  • Test lead (1 pc.)
  • User manual (1 pc.)

Note! Batteries are not included in the package.

Read more
Description

This UNI-T UT10A pocket digital multimeter is designed for measuring AC/DC voltage, resistance, frequency, capacity and can be used for diodes and continuity tests.

UNI-T UT10A Pocket Digital Multimeter User Manuals

Download UNI-T UT10A Pocket Digital Multimeter User Manual

UNI-T UT10A Pocket Digital Multimeter Features

  • Measurement functions:
    • AC/DC voltage
    • resistance
    • frequency
    • continuity test
    • diode test
    • capacitance measurement
  • Relative measurement mode
  • Data Hold
  • Low battery indication

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

UNI-T UT10A Pocket Digital Multimeter Technical Specifications

Display 3999 digit LCD, 43 × 22 mm
DC voltage Range 400 mV / 4 V / 40 V / 300 V
Accuracy ±(0.8%+1)
AC voltage Range 4 V / 40 V / 300 V
Accuracy ±(1.2%+3)
Resistance Range 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ
Accuracy ±(1%+2)
Capacitance Range 4nF / 40nF / 400nF / 40µF / 40µF/ 200µF
Accuracy ±(4%+3)
Frequency Range 10 Hz / 100 kHz
Accuracy ±(0.5%+3)
Power 3 V Button Battery (CR2032)
Dimensions 58 x 108 x 12 mm
Weight 0.062 kg

UNI-T UT10A Pocket Digital Multimeter Package Contains

  • Multimeter UNI-T UT10A (1 pc.)
  • Test lead (1 pc.)
  • User manual (1 pc.)

Note! Batteries are not included in the package.

Specifications
Type
  • digital
Measured Values
  • DC voltage
  • AC voltage
  • resistance
  • capacitance
  • frequency
  • porosity
Additional Functions
  • acoustic continuity test
  • data hold
  • relative measurements
  • diode test
Range Selection
  • auto range
Digit Capacity
  • 3999
DC Voltage
  • up to 300 V
AC Voltage
  • up to 300 V
Resistance
  • up to 40 MOhm
Capacitance
  • up to 200 μF
Frequency
  • up to 100 kHz
AC
  • does not measure the AC
DC
  • does not measure the DC
Inductance
  • no
Temperature
  • no
Power
  • no
Duty cycle
  • yes
True RMS
  • no
Backlight
  • no
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • no
Transistor check
  • no
Continuity test
  • yes
NCV
  • no
Battery Testing
  • no
