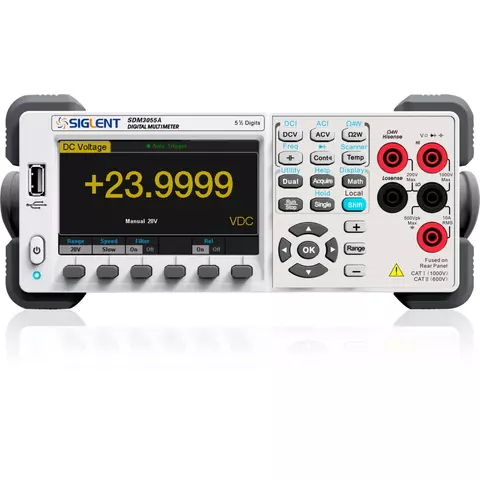

Precision Digital Multimeter Siglent SDM3055A

id: 862797
5.5 kg 110, 220 V Warranty: 36 month (s)
Measuring AC/DC voltage, AC/DC current, capacitance, frequency, period, temperature, connectivity test, diode test. 4.3-inch TFT color LCD. GPIB interface.
Discontinued
Find substitute
Discontinued
Find substitute
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Substitution
Delivery
Payment
Warranty
Overview

Siglent SDM3055A is a 5 ½ digit digital multimeter that features many math and statistical functions. It includes a variety of communication interfaces with easy setup, is equipped with a 4.3-inch TFT-LCD screen, and is designed for users who need high performance, multiple functions, and automatic measurements. Siglent SDM3055A is a high performance desktop multimeter.

Features

  • Measurement speed: up to 150 rdgs/s
  • 1GB Nand Flash total capacity, mass storage settings and data files, supports expandable storage to external U disk
  • Built-in thermocouple
  • Chinese and English menus
  • Built-in help system to facilitate information acquisition and document management
  • Extensive math functions which include measuring the signal’s minimum / maximum / average / standard deviation. Also readings can be displayed in dBm, dB, Pass / Fail, relative value, histograms, trend curves, bar graphs, etc
  • Supports remote command and control, and is provided with PC software EASYSDM
  • 4.3-inch (480×272) true color TFT large screen LCD, and comes configured for a variety of communication interfaces with USB Device, USB Host, LAN ports, GPIB.

Technical Specifications

Function Range Accuracy Resolution
DC voltage measurement 200.000 mV
2.00000 V
20.0000 V
200.000 V
1000.00 V
0.015%+0.004%
0.015%+0.003%
0.015%+0.004%
0.015%+0.003%
0.015%+0.003%
1 µV
10 µV
100 µV
1 mV
10 mV
AC voltage measurement
20 Hz - 45 Hz
45 Hz - 20 kHz
20 kHz - 50 kHz
50 kHz - 100 kHz
200.000 mV
1.5%+0.10%
0.2%+0.05%
1.0%+0.05%
3.0%+0.05%
1 µV
20 Hz - 45 Hz
45 Hz - 20 kHz
20 kHz - 50 kHz
50 kHz - 100 kHz
2.00000 V 1.5%+0.10%
0.2%+0.05%
1.0%+0.05%
3.0%+0.05%
10 µV
20 Hz - 45 Hz
45 Hz - 20 kHz
20 kHz - 50 kHz
50 kHz - 100 kHz
20.0000 V 1.5%+0.10%
0.2%+0.05%
1.0%+0.05%
3.0%+0.05%
100 µV
20 Hz - 45 Hz
45 Hz - 20 kHz
20 kHz - 50 kHz
50 kHz - 100 kHz
200.000 V 1.5%+0.10%
0.2%+0.05%
1.0%+0.05%
3.0%+0.05%
1 mV
20 Hz - 45 Hz
45 Hz - 20 kHz
20 kHz - 50 kHz
50 kHz - 100 kHz
750.000 V 1.5%+0.10%
0.2%+0.05%
1.0%+0.05%
3.0%+0.05%
10 mV
DC current measurement 200.000 µA
2.00000 mA
20.0000 mA
200.000 mA
2.00000 A
10.0000 A
0.055%+0.005%
0.055%+0.005%
0.095%+0.020%
0.070%+0.008%
0.170%+0.020%
0.250%+0.010%
0.001 µA
0.01 µA
0.1 µA
1 µA
10 µA
100 µA
AC current measurement
20 Hz - 45 Hz
45 Hz - 2 kHz
2 kHz - 10 kHz
20.0000 mA
1.5%+0.10%
0.5%+0.10%
2.5%+0.20%
0.1 µA
20 Hz - 45 Hz
45 Hz - 2 kHz
2 kHz - 10 kHz
200.000 mA 1.5%+0.10%
0.5%+0.10%
2.5%+0.20%
1 µA
20 Hz - 45 Hz
45 Hz - 2 kHz
2 kHz - 10 kHz
2.00000 A 1.5%+0.20%
0.5%+0.20%
2.5%+0.20%
10 µA
20 Hz - 45 Hz
45 Hz - 2 kHz
2 kHz - 5 kHz
10.0000 A 1.5%+0.15%
0.5%+0.15%
2.5%+0.20%
100 µA
Resistance measurement 200.000 Ω
2.00000 kΩ
20.0000 kΩ
200.000 kΩ
2.00000 MΩ
10.0000 MΩ
100.000 MΩ
0.030%+0.005%
0.020%+0.003%
0.020%+0.003%
0.020%+0.010%
0.040%+0.004%
0.250%+0.003%
1.750%+0.004%
0.001 Ω
0.01 Ω
0.1 Ω
1 Ω
10 Ω
100 Ω
1 kΩ
Capacitance measurement 2.000 nF
20.00 nF
200.0 nF
2.000 µF
20.00 µF
200.0 µF
10000 µF
3.0%+1.0%
1.0%+0.5%
1.0%+0.5%
1.0%+0.5%
1.0%+0.5%
1.0%+0.5%
2.0%+0.5%
1 pF
10 pF
100 pF
1 nF
10 nF
100 nF
1 µF
Frequency measurement 20 Hz - 2 kHz
2 kHz - 20 kHz
20 kHz - 200 kHz
200 kHz - 1 MHz
0.01%+0.003%
0.01%+0.003%
0.01%+0.003%
0.01%+0.003%
0.001 Hz
Period measurement 1 μs ~ 0.05 s
Diode test range fixed 2 V
Continuity test range fixed 2 kΩ
Temperature measurement Support thermocouple, RTD temperature sensor
General Characteristics
Power supply 230 V / 50 Hz / 110 V / 60 Hz mains connection
Maximum input voltage 1000V
Display 4.3" color LCD, 480×272
Configuration Interface USB Device,USB Host,LAN, GPIB
Size 282 mm × 260 mm × 105 mm
Weight 3300 g

Package Contents

  • Siglent SDM3055A Digital Multimeter — 1 pc.
  • Power Cord — 1 pc.
Specifications
Type
  • digital
  • desktop
Range Selection
  • auto range
Digit Capacity
  • 240 000
DC Voltage
  • up to 1000 V
AC Voltage
  • up to 750 V
Frequency
  • up to 1 MHz
DC
  • up to 10 A
AC
  • up to 10 A
Inductance
  • no
Temperature
  • no
Power
  • no
Duty cycle
  • no
True RMS
  • yes
Backlight
  • yes
PC connection
  • USB
Diode test
  • yes
Analog bar graph
  • yes
Transistor check
  • no
Continuity test
  • yes
Capacitance
  • up to 10 000 μF
Resistance
  • up to 100 MOhm
NCV
  • no
Battery Testing
  • no
