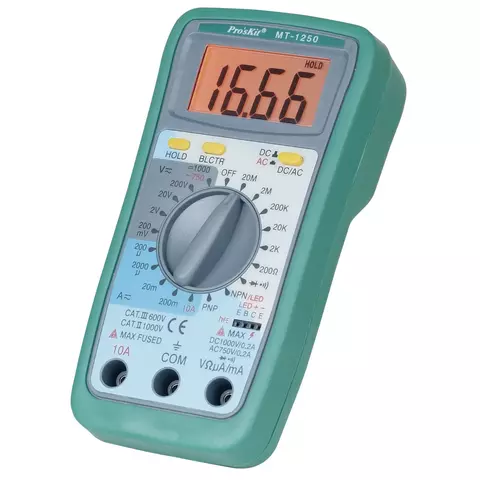

Professional 3 1/2 Digital Multimeters Pro'sKit MT-1250

id: 7512
0.35 kg Warranty: 6 month (s)
All base functions. Broadband and highly sensitive. Current overload protection. Limit of effective range by voltage - 1000V.
Discontinued
Contact
sales team
Discontinued
Contact
sales team
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Substitution
Delivery
Payment
Warranty
Overview

Pro'sKit MT-1250 - broadband and highly sensitive digital professional multimeter with all basic functions, current overload protection, limit of effective range by voltage 1000V.

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Technical specifications

Ranging manual
Counts 1999
Dígits 3 ½
DC voltage 200 mV/ ±0.5%, 2/20/200 V ±1.0%, 1000 V±1.5%.
AC voltage 200 mV ±1.0%, 2/20/200 V ±1.5, 750 V ±2.5%.
DC current 200 µA/2 m/20 m/200 mA ±1.5%, 10 A ±2.5%.
AC current 200 µA/2 m/20 m/200 mA ±1.2%, 10 A ±2.0%.
Resistance 200 Ω ±1.2%, 2/20/200 kΩ/2 MΩ ±1.0%, 20 MΩ ±2.5%.
Conductivity wire identification Yes
Diode, transistor test Yes
Data Hold function Yes
Power source 6 F22 9 V
Dimensions 147 x 75 x 40 mm
Specifications
Type
  • digital
Measured Values
  • DC voltage
  • AC voltage
  • AC
  • DC
  • resistance
Additional Functions
  • acoustic continuity test
  • data hold
  • automatic shutdown/sleep mode
  • diode test
  • transistors test
  • backlight
Range Selection
  • manual range
Digit Capacity
  • 1999
DC Voltage
  • up to 1000 V
AC Voltage
  • up to 750 V
Resistance
  • up to 20 MOhm
DC
  • up to 10 A
AC
  • up to 10 A
Capacitance
  • does not measure the capacitance
Frequency
  • does not measure the frequency
Inductance
  • no
Temperature
  • no
Power
  • no
Duty cycle
  • no
True RMS
  • no
Backlight
  • yes
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • no
Transistor check
  • yes
Continuity test
  • yes
NCV
  • no
Battery Testing
  • no
