Professional Battery Analyzer Smart 5000mAh

id: 813020
3.7 kg 110, 220 V Warranty: 6 month (s)
4-pole probes applied. SBA can be operated by both your PC and the buttons. Rapid analyzing + printing results on normall printer connected to PC.
Discontinued
Contact
sales team
Discontinued
Contact
sales team
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Delivery
Payment
Warranty
Overview

Smart Battery Analyzer II is a high capacity tester compatible with batteries up to 5000 mAh so it can analyze even laptop batteries. The latest powerfull technology allows to connect the device directly to PC to perform rapid analyzing. Due to computer interface, the CH/DCH curve is shown on LCD. The battery analzyer can test up to 9.6 V digital camera and digital video camcorder battery packs up to 2500 mAh. The testing results are much more accurate in compison with the older version, battery capacity and internal resistance testing data have higher precision level (due to 4 probe pins instead of 2 and intelligent polarity detection).

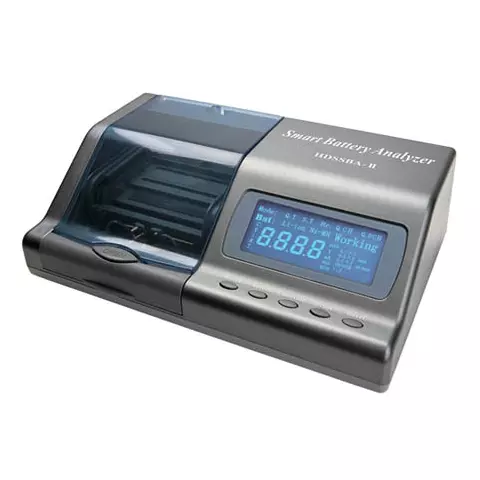

Smart Battery Analyzer II;

Smart Professional Battery Analyzer Features

  • More accurate testing results due to 4-pole probes applied
  • Easy operation: the SBA can be operated either by PC or keyboard
  • Rapid analyzing + result printing on normall printer connected to PC
  • CH/DCH curve is shown on LCD
  • PC interface to control and monitor battery analyzer
  • Printing saved data on regular printer (or specified mini printer)
  • Intelligent identification of the “+”and “-” battery poles
  • Compatible with all kinds of mobile phone's battery packs, most digital camera battery packs and some digital video camcorder battery packs up to 9.6 V
  • Testing Li-ion, Li-Pol and Ni-MH rechargeable battery packs
  • Quick testing mode: takes only 15 seconds to measure battery voltage and internal resistance, check its short circuit protection and charge/discharge circuit available in the battery pack
  • Full measuring of battery actual capacity, charging/discharging time, internal resistance, overcharging protection, overdischarging protection, short circuit protection
  • Up to 4.3 V charging voltage (the last version is 4.2 V over charging voltage) to meet the latest requirements of overcharging protection circuit to be tested without miss-reporting
  • Two testing modes (selected by user): 1C (fast charging/discharging current) and 0.2C (slow charging/discharging current for particular accuracy of testing result)
  • Battery reactivating after being left unused for a long period of time
  • Fast ans slow battery charging/discharging
  • Polarity reversing switch for easy contact polarity correction while testing a battery
  • Driver CD (in English) included

Rapid anaylizing screenshots

Screenshot 1;

Screenshot 2;

Screenshot 3;

Battery testing options

  • Li-Ion 3.6 V (3.7 V), 7.2 V (7.4 V)
  • Li-Ion Polimer 3.6 V (3.7 V), 7.2 V (7.4 V)
  • Ni-MH 2.4 V, 3.6 V, 4.8 V, 6.0 V, 7.2 V, 8.4 V, 9.6 V
  • Capacity range for testing: 50 mAh -- 5000 mAh

Smart Professional Battery Analyzer Specification

Input voltage 110 V / 220 V AC ± 10%
Output current < 5000 mA
Working frequency 50 Hz / 60 Hz ± 1 Hz
Working temperature 0...+45 °C
Relative humidity < 85 %
Size 270 x 170 x 80 mm
System requirement Windows 98 or above
