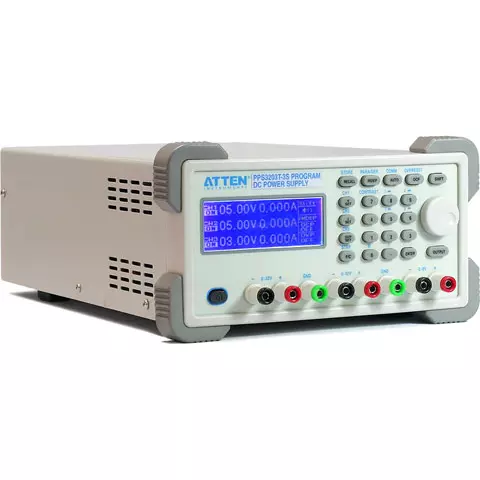

Programmable Power Supply ATTEN PPS3203T-3S

id: 821795
10 kg 220 V Warranty: 6 month (s)
ATTEN PPS3203T-3S is the programmable linear DC power unit with 3 channels. It supplies up to 32V/3A.
Discontinued
Contact
sales team
Discontinued
Contact
sales team
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Delivery
Payment
Warranty
Overview
The item description can be changed as soon as the item is in stock.

ATTEN PPS3203T-3S is the programmable linear DC power unit with 3 channels. It supplies up to 32V/3A. The versatile ATTEN PPS3203T-3S with LCD panel is ideal for applications requiring high resolution, multiple output, and is useful for production testing and rack mounting systems.

ATTEN PPS3203T-3S Programmable Power Supply Features

  • Entirely digital programmable user-friendly interface
  • Overvoltage, overcurrent, and overtemperature protection
  • Automatic fan control (changes together with the output power)
  • Alterable display mode
  • Memory for 100 settings
  • Compact and lightweight package
  • High stability
  • Automatic parallel function
  • Options interface GPIB (IEEE 488.2)

ATTEN PPS3203T-3S Programmable Power Supply Software

Download ATTEN PPS3203T-3S Programmable Power Supply Software

ATTEN PPS3203T-3S Programmable Power Supply Technical Specifications

Model PPS3203T-3S PPS3205T-3S
Output Voltage 0-32V×2, 0-6V×1
Current 0-3A×3 0-5A×2, 0-3A×1
Load regulation Voltage ≤5mV (≤10mV when rate current >3A)
Current ≤3mA (≤10mA when rate current >3A)
Voltage regulation Voltage ≤3mV
Current ≤3mA
Resolution Voltage 10mV
Current 1mA (2mA when rate current >3A)
Set Accuracy (25+5°C) Voltage ≤0.05%+20mV
Current ≤0.1%+5mA(+10mA when rate voltage >3A)
Ripple Voltage ≤1mV rms(≤2mV rms when rate voltage >3A)
Current ≤3mA rms (≤5mA rms when rate voltage >3A)
Temperature coefficient (0-10°C) Voltage 100ppm+3mV
Current 100ppm+3mA
Time response Voltage rise 10%-90≤100ms
Current down 90%-10%≤100ms (>30% rate load)
Read-back temperature coefficient Voltage ≤100ppm+10mV
Current ≤150ppm+10mA
Drift Voltage ≤100ppm+10mV
Current ≤150ppm+10mA
Synchronous serial operation Serial operation error ≤0.1% +20mV
load 20mV
Synchronous serial operation Voltage set accuracy ≤0.05%+20mV
Current set accuracy ≤0.1%+10mV
Voltage load regulation ≤30mV (≤50mV when rate current >3A)
Current load regulation ≤6mA
Voltage regulation ≤3mV
Current regulation ≤6mA
Memory Save/recall 0-120 groups of programmed voltage¤t output
Timer Set time 1s to 9999s
Resolution 1 second
Function auto step running
Interface RS232(standard configuration),USB interface (optional)
Dimensions, mm 140 × 230 × 380
Weight, kg 10
Specifications
Type
  • transformer
  • programmable
Number of channels
  • three-channel
Max. Current
  • up to 3 A
Indicator type
  • LCD indicators
Max. Voltage
  • up to 32 V
