Overview
10 kg 220 V Warranty: 6 months

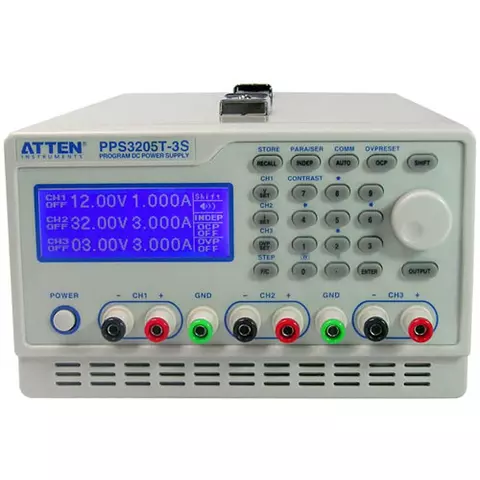

ATTEN PPS3205T-3S is the programmable linear DC power unit with 3 channels. It supplies up to 32V/5A. Read more
Description
the item description can be changed as soon as the item is in stock.
ATTEN PPS3205T-3S is the programmable linear DC power unit with 3 channels. It supplies up to 32V/5A. The versatile ATTEN PPS3205T-3S with LCD panel is ideal for applications requiring high resolution, multiple output, and is useful for production testing and rack mounting systems.
ATTEN PPS3205T-3S Programmable Power Supply Features
- Entirely digital programmable user-friendly interface
- Overvoltage, overcurrent, and overtemperature protection
- Automatic fan control (changes together with the output power)
- Alterable display mode
- Memory for 100 settings
- Compact and lightweight package
- High stability
- Automatic parallel function
- Options interface GPIB (IEEE 488.2)
ATTEN PPS3205T-3S Programmable Power Supply Technical Specifications
| Model | PPS3203T-3S | PPS3205T-3S | |
|---|---|---|---|
| Output | Voltage | 0-32V×2, 0-6V×1 | |
| Current | 0-3A×3 | 0-5A×2, 0-3A×1 | |
| Load regulation | Voltage | ≤5mV (≤10mV when rate current >3A) | |
| Current | ≤3mA (≤10mA when rate current >3A) | ||
| Voltage regulation | Voltage | ≤3mV | |
| Current | ≤3mA | ||
| Resolution | Voltage | 10mV | |
| Current | 1mA (2mA when rate current >3A) | ||
| Set accuracy (25+5°C) | Voltage | ≤0.05%+20mV | |
| Current | ≤0.1%+5mA(+10mA when rate voltage >3A) | ||
| Ripple | Voltage | ≤1mV rms(≤2mV rms when rate voltage >3A) | |
| Current | ≤3mA rms (≤5mA rms when rate voltage >3A) | ||
| Temperature coefficient (0-10°C) | Voltage | 100ppm+3mV | |
| Current | 100ppm+3mA | ||
| Time response | Voltage rise | 10%-90≤100ms | |
| Current down | 90%-10%≤100ms (>30% rate load) | ||
| Read-back temperature coefficient | Voltage | ≤100ppm+10mV | |
| Current | ≤150ppm+10mA | ||
| Drift | Voltage | ≤100ppm+10mV | |
| Current | ≤150ppm+10mA | ||
| Synchronous serial operation | Serial operation error | ≤0.1% +20mV | |
| Load | 20mV | ||
| Synchronous serial operation | Voltage set accuracy | ≤0.05%+20mV | |
| Current set accuracy | ≤0.1%+10mV | ||
| Voltage load regulation | ≤30mV (≤50mV when rate current >3A) | ||
| Current load regulation | ≤6mA | ||
| Voltage regulation | ≤3mV | ||
| Current regulation | ≤6mA | ||
| Memory | Save/recall 0-120 groups of programmed voltage¤t output | ||
| Timer | Set time | 1s to 9999s | |
| Resolution | 1 second | ||
| Function | auto step running | ||
| Interface | RS232(standard configuration),USB interface (optional) | ||
| Dimensions, mm | 140 × 230 × 380 | ||
| Weight, kg | 10 | ||
