Overview
Brand: HYelec
2.52 kg 110, 220 V Warranty: 6 months
Powers electronic devices and schemes with direct voltage from 0 to 15 V and current from 0 to 2 A. LCD display
USD 48.00
Contact
sales team
Compare
Compare
USD 48.00
Contact
sales team
Impossible to estimate the shipping cost
Description

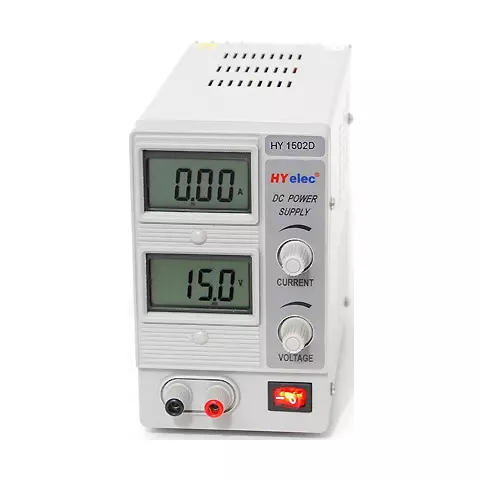

Power supply unit HY 1502D provides electronic devices and schemes with power supply of direct voltage from 0 to 15 V and current from 0 to 2 A .

Features

Read more
Description

Power supply unit HY 1502D provides electronic devices and schemes with power supply of direct voltage from 0 to 15 V and current from 0 to 2 A .

Features

  • Liquid-crystal indicators are used as block’s visual devices for output parameters control.
  • Output voltage is less than 1% ± 2 units and current measuring accuracy - 2% ± 2 units.
  • Parameters are adjusted by means of potentiometers located to the right of the LCD.
  • Output terminals from which voltage and current are read as well as the ground connector, are located at the bottom of the HY1502D faceplate.
  • Sockets with screwing clips allow application of wires with one-pin plug and without any plugs at all. In that case the wire is fixed by means of the screw clip.
  • Power supply HY1502D is powered from AC mains 220 V and switching on/off by means of a special key.

Technical specifications

Output voltage, V 0 - 15
Output current, A 0 - 2
Ripple level By current, mA ≤ 3
By voltage, mV ≤ 0,5
Load effect, % By current ≤ 0,2 + 5 mA
By voltage ≤ 0,01 + 5 mV
Supply voltage effect, % By current ≤ 0,2 + 1 mA
By voltage ≤ 0,01 + 1 mV
Output current value and output voltage value indication 3 ½-digits LED indicators
Dimensions, mm 206 × 153 × 110
Weight, kg 2,5
Specifications
Type
  • transformer
Number of channels
  • single-channel
Max. Voltage
  • up to 15 V
Max. Current
  • up to 2 A
Indicator type
  • LCD indicators
