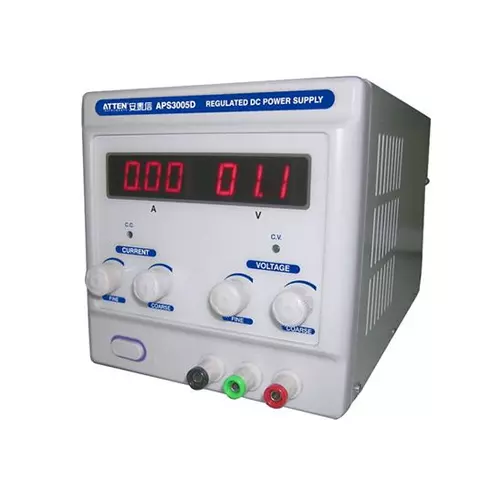

Regulated Power Supply Unit ATTEN APS3005D
id: 843010
Regulated Power Supply Unit ATTEN APS3005D
Overview
Description
Specifications
Delivery
Payment
Warranty
Discontinued
Overview
6 kg 220 V Warranty: 6 months
Constant current (0-5 A) and voltage (0-30 V) supply unit with one adjustable channel. Read more
Description
ATTEN APS3005D supplies DC current (0-5 A) and voltage (0-30 V) and is ideal for educational institutions and research labs. ATTEN APS3005D has 1 adjustable channel.
Features
- 1 adjustable channel
- Low ripple and noise level
- Overload and reverse polarity protection
Specifications
| Rated output voltage | 0-30 V (Adjustable) | |
| Rated output current | 0-5 A (Adjustable) | |
| AC input voltage | AC 110 V/220 V, 60 Hz/50 Hz | |
| Ripple and noise | ≤3 mV (rms) | |
| Load stability | ≤0.3% | |
| Display resolution | voltage 0.1 V and current 0.01 A | |
| Protection | current limited lower voltage, short circuit protection and over-temperature protection. |
|
| Insulation Resistance | ≥ 7 MΩ | |
| Cooling method | Strong wind cooling | |
| Dimensions | 260 × 150 × 160 mm | |
Specifications
| Type |
|
| Number of channels |
|
| Max. Voltage |
|
| Max. Current |
|
| Indicator type |
|
