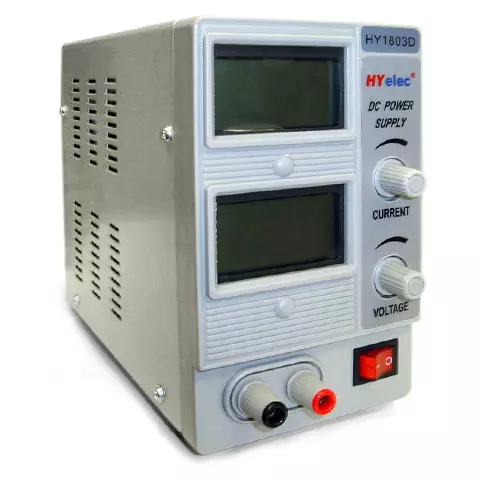

Regulated Power Supply Unit HYelec HY1803D
id: 817686
Regulated Power Supply Unit HYelec HY1803D
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 53.00
Overview
Brand:
HYelec
3.7 kg 220 V Warranty: 6 months
The unit powers electronic devices and circuits with DC voltage between from 0 to 18V and DC current from 0 to 3A. 1 adjustable channel. Read more
Buy wholesale and save
Description
A linear power supply is designed to stabilize the DC voltage or current, depending on the selected mode. The unit powers electronic devices and circuits with DC voltage between from 0 to 18V and DC current from 0 to 3A.
HY1803D Regulated Power Supply Unit Features
- Two 3-digit LCDs with output parameters. Simultaneous display of output voltage and current
- Parameters adjusted by means of potentiometers. Independent adjustment of current and voltage.
- Overload and short circuit protection.
- 1 adjustable channel
HY1803D Regulated Power Supply Unit Technical Specifications
| Display | 2 × 3 digit LCD | |
| Output Voltage, V | 0 - 18 | |
| Output Current, A | 0 - 3 | |
| Output voltage display accuracy | 1 % ± 2 | |
| Output current display accuracy | 2% ± 2 | |
| Ripple level | current, mA | ≤ 3 |
|---|---|---|
| voltage, mV | ≤ 0,5 | |
| Load effect, % | current, mA | 0.2 + 5 |
| voltage, mV | 0.01 + 5 | |
| Power effect, % | current, mA | 0.2 + 1 |
| voltage, mV | ≤0.01 + 1 | |
| Power supply, V | ~ 220 / 110V ± 10 % | |
| Dimensions, mm | 206 × 153 × 110 | |
| Weight, kg | approx. 4.5 kg | |
Specifications
| Type |
|
| Number of channels |
|
| Max. Current |
|
| Indicator type |
|
| Max. Voltage |
|
