Overview
0.4 kg Warranty: 6 months

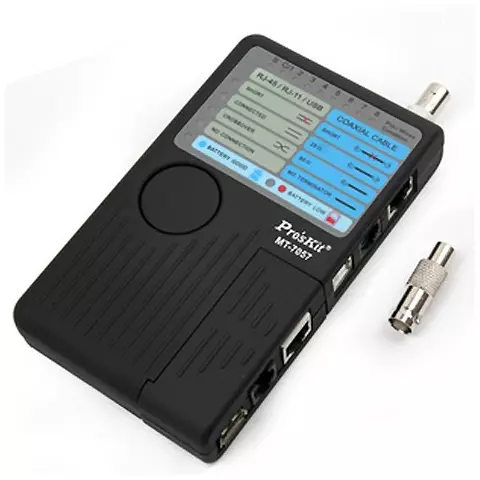

MT-7057 tests installed and external patch cables (RJ-11, RJ-45, USB and BNC). A cable tester consists of a main unit and a remote unit.
Discontinued
Contact
sales team
Compare
Compare
Discontinued
Contact
sales team
Impossible to estimate the shipping cost
Description

MT-7057 tests installed and external patch cables (RJ-11, RJ-45, USB and BNC). The tester has a remote unit, which comes attached to the main unit and is easily detached for testing installed cables (in wall, ceiling, etc.). External cables can be tested without detaching the remote unit.

Pro'sKit MT-7057 RJ11/RJ45/BNC/USB Cable Tester Features

  • Ergonomic portable design
  • Remote unit stored in main unit
  • Simple one button test
  • Audible annunciation of test results
  • Indicated faults:
    • no connection;
    • short;
    • opens;
    • crosses (cross connected wire);
    • miswires.
  • Low battery indicator

Pro'sKit MT-7057 can test the following cables:

  • Shielded (STP) and unshielded (UTP) LAN cables terminated in RJ-45 male connectors (EIA/TIA 568);
  • RJ-11 cable with male connector;
  • USB cables with type A flat plug on one end and type B square plug on other end;
  • BNC cables with male connector.

Pro'sKit MT-7057 RJ11/RJ45/BNC/USB Cable Tester Technical Specifications

Tested cables RJ-11, RJ-45, USB and BNC
Power 1 battery, 9V (not included)
Dimensions, mm 160 × 87 × 26
Weight, g 170 (without battery)

Pro'sKit MT-7057 RJ11/RJ45/BNC/USB Cable Tester contains

  • Main unit
  • Remote unit
  • Female BNC terminator
  • User manual
  • Carrying case
Read more
Description

MT-7057 tests installed and external patch cables (RJ-11, RJ-45, USB and BNC). The tester has a remote unit, which comes attached to the main unit and is easily detached for testing installed cables (in wall, ceiling, etc.). External cables can be tested without detaching the remote unit.

Pro'sKit MT-7057 RJ11/RJ45/BNC/USB Cable Tester Features

  • Ergonomic portable design
  • Remote unit stored in main unit
  • Simple one button test
  • Audible annunciation of test results
  • Indicated faults:
    • no connection;
    • short;
    • opens;
    • crosses (cross connected wire);
    • miswires.
  • Low battery indicator

Pro'sKit MT-7057 can test the following cables:

  • Shielded (STP) and unshielded (UTP) LAN cables terminated in RJ-45 male connectors (EIA/TIA 568);
  • RJ-11 cable with male connector;
  • USB cables with type A flat plug on one end and type B square plug on other end;
  • BNC cables with male connector.

Pro'sKit MT-7057 RJ11/RJ45/BNC/USB Cable Tester Technical Specifications

Tested cables RJ-11, RJ-45, USB and BNC
Power 1 battery, 9V (not included)
Dimensions, mm 160 × 87 × 26
Weight, g 170 (without battery)

Pro'sKit MT-7057 RJ11/RJ45/BNC/USB Cable Tester contains

  • Main unit
  • Remote unit
  • Female BNC terminator
  • User manual
  • Carrying case
Specifications
Cable length measurement
  • not available
USB Cable Testing
  • available
Twisted pair cable testing
  • available
Coaxial cable testing
  • available
Locator function
  • not available
