Overview
0.15 kg Warranty: 12 months

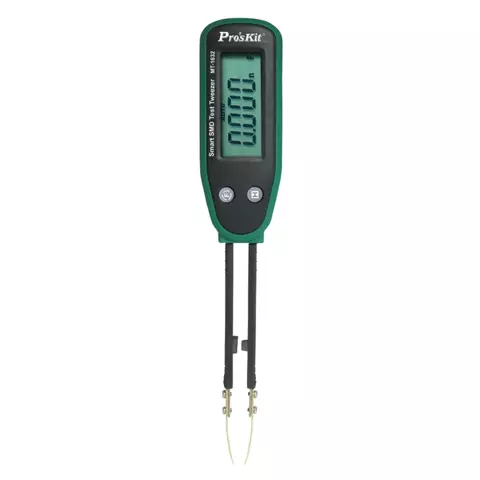

Tweezers-shaped digital multimeter for SMD testing and troubleshooting. Measures resistance and capacitance, tests diodes and continuity.
Discontinued
Contact
sales team
Compare
Compare
Discontinued
Contact
sales team
Impossible to estimate the shipping cost

You may also like

SMD Tester UNI T UT116A
Add to wishlist
SMD Tester UNI-T UT116A
USD 24.58
Add to wishlist
Add to cart
Compact SMD tester designed for measuring DC voltage, resistance, capacitance, and also for continuity and diode testing.
Availability in stock: HK
Shipping cost
ID: 894024 0.1 kg
Description

Pro'sKit MT-1632 is a digital tester designed for testing and troubleshooting of surface mounted devices. V-shape tip enables more convenient measuring of small parts.

Features

  • 3 2/3 digits, 2999 counts display
  • Auto / manual ranging
  • LCD display
  • Functions selection
  • Data hold
  • Auto power-off
  • Low battery indication

Technical Specifications

Resistance 300 Ω /3 KΩ / 30 K/ 300 K / 3 MΩ ± (1% rdg+ 2 dgt)
30 MΩ ± (1.2% rdg + 3 dgt)
Resolution: 0.1 Ω
Capacitance 3 nF / 30 nF / 300 nF / 3 uF / 30 uF ± (2.5% rdg + 3 dgt)
300 uF / 3 mF / 30 mF ± (3% rdg + 3 dgt)
Resolution: 1 pF
Diode test Open voltage : 2.8 V
Continuity Testing current : 2 mA
Dimensions 170 × 32 × 30 mm
Power source 1 x 3 V CR2032 cell (not included)
Auto power-off 10 minutes after idling

Package Contents

  • Multimeter Pro'sKit MT-1705 — 1 pc.
  • Replacement tip — 1 pair
  • Carrying case — 1 pc.
Read more
Description

Pro'sKit MT-1632 is a digital tester designed for testing and troubleshooting of surface mounted devices. V-shape tip enables more convenient measuring of small parts.

Features

  • 3 2/3 digits, 2999 counts display
  • Auto / manual ranging
  • LCD display
  • Functions selection
  • Data hold
  • Auto power-off
  • Low battery indication

Technical Specifications

Resistance 300 Ω /3 KΩ / 30 K/ 300 K / 3 MΩ ± (1% rdg+ 2 dgt)
30 MΩ ± (1.2% rdg + 3 dgt)
Resolution: 0.1 Ω
Capacitance 3 nF / 30 nF / 300 nF / 3 uF / 30 uF ± (2.5% rdg + 3 dgt)
300 uF / 3 mF / 30 mF ± (3% rdg + 3 dgt)
Resolution: 1 pF
Diode test Open voltage : 2.8 V
Continuity Testing current : 2 mA
Dimensions 170 × 32 × 30 mm
Power source 1 x 3 V CR2032 cell (not included)
Auto power-off 10 minutes after idling

Package Contents

  • Multimeter Pro'sKit MT-1705 — 1 pc.
  • Replacement tip — 1 pair
  • Carrying case — 1 pc.
Specifications
Type
  • tweezers
Range Selection
  • auto range
Digit Capacity
  • 3000
AC
  • does not measure the AC
DC
  • does not measure the DC
Frequency
  • does not measure the frequency
Inductance
  • no
Temperature
  • no
Power
  • no
Duty cycle
  • no
True RMS
  • no
Backlight
  • no
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • no
Transistor check
  • no
AC Voltage
  • does no measure the AC voltage
DC Voltage
  • does not measure the DC voltage
Continuity test
  • yes
Resistance
  • up to 30 MΩ
Capacitance
  • up to 30 000 µF
