Overview
4 kg 110, 220 V Warranty: 12 months
Infrared thermal imaging camera with a temperature range from -25 to 380°C, image resolution: 4,800 Pixels (80 x 60), 8 GB memory on MicroSD card. Read more
Discontinued
Description

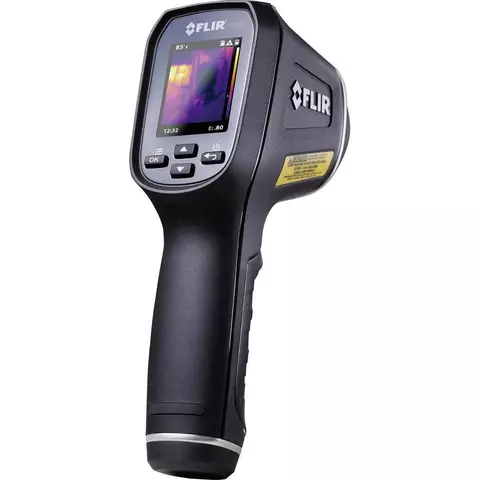

FLIR TG165 is an infrared thermal imaging camera with a temperature range from -25 to 380°C.
Features
- True thermal detection with FLIR Lepton® micro thermal camera.
- Portable, ergonomic design.
- Simple to operate – intuitive buttons and menu icons.
- Rugged and reliable – withstands a 2-meter drop.
- Dual pointer lasers.
- Convenient pull trigger activates lasers and freezes images.
- Removable MicroSD card, mini USB port for downloading images and charging internal battery.
- Tripod mount / lanyard connection.
Technical Specifications
| IR Temperature Measurement | |
|---|---|
| Basic Accuracy | +/- 1.5% or 1.5°C |
| Range | -25 to 380°C, -13 to 716°F |
| Emissivity | 4 Pre-Set Levels with Custom Adjustment, 0.1 to 0.99 |
| Dist. to Spot Ratio (D:S) | 24:1 |
| Measurement Resolution | 0.1 °C / °F |
| Response Time | 150 Milliseconds |
| Spectral Response | 8 to 14μm |
| Thermal Imaging | |
| Imaging Detector | FLIR Lepton™ Microbolometer Focal Plane Array (FPA) |
| Shutter | Integrated Automatic Shutter |
| Image Resolution (H x W) | 4,800 Pixels (80 x 60) |
| Spectral Response | 8 to 14μm |
| Field of View (H x W) | 50° x 38.6° |
| Thermal Imaging Sensitivity | 150 mK |
| Frame Rate | 9 Hz |
| Color Palettes | 2 (Grey Scale, Hot Iron) |
| Saved Image Format | Bitmap (BMP) Image with Temperature and Emissivity |
| General | |
| Unit Size (H x W x D) | 7.3 x 2.2 x 3.7 in (186 x 55 x 94 mm) |
| Display Type | 2.0 in TFT LCD |
| Display Resolution (W x H) | 38,720 Pixels (176 x 220) |
| Battery | Rechargeable via Micro USB Lithium-ion Battery: 3.7V, 2600mAh |
| Auto Power Off | Yes, Adjustable with Disable |
| Battery Life Hours | Typical Use: Five 8-Hr Work Days; Continuous Use: 8 Hrs |
| Certifications | CE / CB / FCC / FDA |
| Memory | 8Gb Micro SD Card |
| Operating Temperature | -10 to 45°C, 14 to 113°F |
| Drop Test | Designed for 2 Meter, 6.5 Feet |
Additional Information
Download FLIR E4 Data Sheet.
Package Contents
- FLIR TG165 Thermal Imaging Camera — 1 pc.
- USB Cable — 1 pc.
- 8 GB MicroSD Card — 1 pc.
- International Charger (US, UK, EU, AU, CN) — 1 pc.
- Lanyard — 1 pc.
- Technical Documentation — 1 pc.
