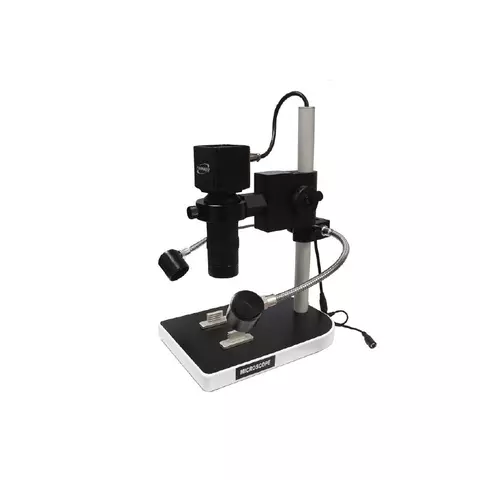

TORNADO Pro Digital USB Microscope
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Discontinued
Contact
sales team
Overview
3.2 kg 220 V Warranty: 6 months
Improved version of the TORNADO USB microscope: independent screen settings, high-quality CCD camera, and a automatic illumination.
Discontinued
Contact
sales team
Compare
Compare
Discontinued
Contact
sales team
Impossible to estimate the shipping cost
Description

TORNADO Pro digital USB microscope is a digital microscope designed specially for work with small mobile phone PCBs. It is an improved version of the TORNADO microscope: it features independent screen settings, high quality 1/3" Imax CCD camera and independent illumination.

TORNADO Pro Digital USB Microscope Features

  • Independent display settings
  • Photo and videorecording support
  • Convenient saving of taken pictures and of the whole unblocking process
  • PC connection via USB-port 2.0
  • Clear and bright image for your PC/Laptop

TORNADO Pro Digital USB Microscope Technical Specifications

TORNADO Pro Camera
Type Color CCD camera
Sensor 1/3 “ Imax CCD
Screen Resolution 510 × 492 NTSC500 × 582 PAL
Resolution 420 TB lines
Min lighting 0.2 lux
Waveform/noice > 48 dB
Electric shutter 1/60(1/50) - 1/100,000 s
Gamm correction 0.45
Synchroniztion system Inner
Backlight Compensation (BLC) On/Off - automatic
Automatic gain control (AGC) Auto
Video output 1 Vpp Composite Output
Digital output USB 2.0
Power suplly 12 V
Power supply 1.2 W max
Measurements, mm 58 × 48 × 75
TORNADO Pro Lense
Lense zoom 0.7x~4.5x
Ocular zoom 0.5 X
Digital aperture NA0.029~0.073
Coupled distance 350 mm

TORNADO Pro Digital USB Microscope Video

Youtube video

TORNADO Pro Digital USB Microscope Package Content

  • Tornado Pro camera
  • Lense
  • Bay
  • Camera power adaptor 12 V
  • Lamp 220 V
Read more
Description

TORNADO Pro digital USB microscope is a digital microscope designed specially for work with small mobile phone PCBs. It is an improved version of the TORNADO microscope: it features independent screen settings, high quality 1/3" Imax CCD camera and independent illumination.

TORNADO Pro Digital USB Microscope Features

  • Independent display settings
  • Photo and videorecording support
  • Convenient saving of taken pictures and of the whole unblocking process
  • PC connection via USB-port 2.0
  • Clear and bright image for your PC/Laptop

TORNADO Pro Digital USB Microscope Technical Specifications

TORNADO Pro Camera
Type Color CCD camera
Sensor 1/3 “ Imax CCD
Screen Resolution 510 × 492 NTSC500 × 582 PAL
Resolution 420 TB lines
Min lighting 0.2 lux
Waveform/noice > 48 dB
Electric shutter 1/60(1/50) - 1/100,000 s
Gamm correction 0.45
Synchroniztion system Inner
Backlight Compensation (BLC) On/Off - automatic
Automatic gain control (AGC) Auto
Video output 1 Vpp Composite Output
Digital output USB 2.0
Power suplly 12 V
Power supply 1.2 W max
Measurements, mm 58 × 48 × 75
TORNADO Pro Lense
Lense zoom 0.7x~4.5x
Ocular zoom 0.5 X
Digital aperture NA0.029~0.073
Coupled distance 350 mm

TORNADO Pro Digital USB Microscope Video

Youtube video

TORNADO Pro Digital USB Microscope Package Content

  • Tornado Pro camera
  • Lense
  • Bay
  • Camera power adaptor 12 V
  • Lamp 220 V
Specifications
Type
  • maintenance
  • USB
Maximum Zoom Ratio
  • up to 4.5X
Illumination
  • upper light
Zoom Rate Control Method
  • discrete adjustment of multiplicity
Image Sensor Size
  • 0.3 MP
Video
Youtube video
