Triple DC Power Supply HYelec HY3003M-3

id: 812011
8.7 kg 220 V Warranty: 6 month (s)
Three independent output channels: two of them provide adjustible output of 0-3 A and 0- 30 V, while the 3rd has fixed output of 3 A, 5 V DC.
USD 210.00
Contact
sales team
USD 210.00
Contact
sales team
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Delivery
Payment
Warranty
Overview

HY3003M-3 Power Supply belongs to TRIPLE OUTPUT SERIES and has three independent output channels: two of them provide adjustible output of 0-3 A and 0- 30 V, while the third has fixed output of 3 A, 5 V DC. Both series and parallel connection is possible allowing to double the voltage or current, and outputs can be tracked relative to the master output. The highest output is the sum of twice the voltage value in series mode and the highest output current is the sum of twice the current value in parallel mode.

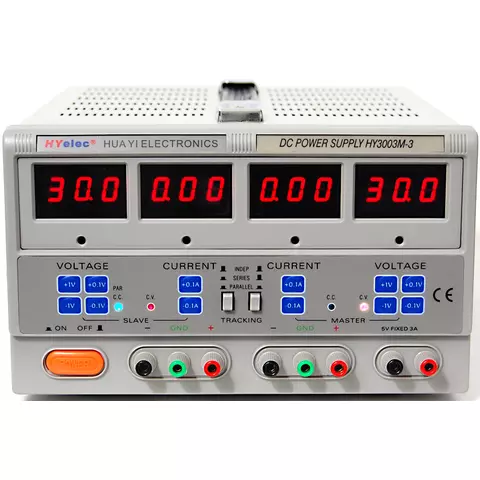

  • In the lower part of HY3003M-3 front panel there are output terminals and earth connectors. Each output has its separate terminal group. The first two channels have earth connectors while the third does not.
  • The device allows smooth adjustment of both parameters (current and voltage) in two modes: rough and fine. Each output has a separate potentiometer.
  • HY3003M-3 power supply has four 3-digit LED panels where output current and voltage values for each channel are displayed. Indication accuracy less than 2 %.
  • HY3003M-3 power supply protects against current and voltage overload. Overload indicator lights up when any exceeding parameter value is registered. To prevent the device from damage, the security system disconnects secondary voltage on the overloaded channel until the malfunction is removed.

Specifications of HY3003M-3 Power Supply

Output voltage

1st and 2nd channels: 0-30 V

3rd channel: 5 V

Output current
1st and 2nd channels: 0-3 A

3rd channel: 3 A

Ripple & noise

CC

<3 mA
CV

< 0,5 mV

Load regulation

CC

< 0.2% ± 1 mA

CV

<0.01% ± 1 mV

Line regulation
CC

< 0.2% ± 1 mA

CV

<0.01% ± 1 mV

Display
four 3-digit LED panels

Dimensions, mm

365 × 265 × 164

AC mains power

~ 220 V ± 10 %

Specifications
Type
  • transformer
Number of channels
  • three-channel
Max. Voltage
  • up to 30 V
Max. Current
  • up to 3 A
Indicator type
  • LED indicators
