Universal Microscope Stand TD-I
id: 813724
Universal Microscope Stand TD-I
Overview
Description
Delivery
Payment
Warranty
USD 156.00
Overview
Supports microscope while observing large or irregularly
shaped subjects. Compatible with any microscope objective up to Ø 75 mm. Read more
Buy wholesale and save
Description

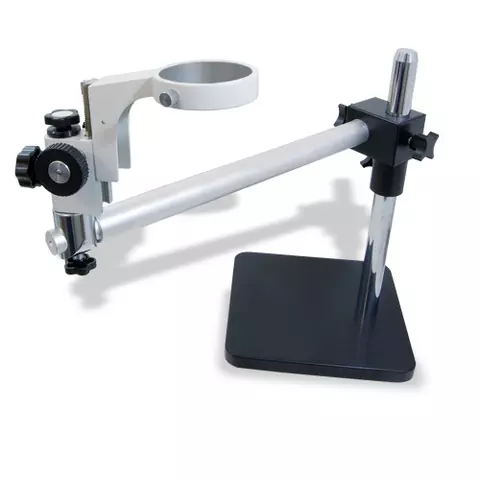

Universal stand TD-I with a large base is used to support microscope to observe objects that are too large or irregularly shaped to be studied by means of a conventional microscope. Compatible with any microscope objective up to Ø 75 mm.
Universal Microscope Stand TD-I Applications
- Technical inspection and servicing of big or nondetachable modules and components
- Medical and dental examiinations
- Jewelry check and repair
- Various research and education purposes
Universal Microscope Stand TD-I Specifications
| Model | TD-I | TD-II |
| Base size | 250 mm x 250 mm | |
| Maximum working distance | 385 mm | |
| Horisontal arm length | 480 mm | 440 mm |
| Support beam diameter | 30 mm | |
| Holding ring diameter | adjustable up to 75 mm | |
| Holder positioning | horisontal & vertical | vertical |
| Weight | 16,7 kg | |
