USB Digital Microscope Microsafe ShinyVision MM-2288-5X-B (2 MPx)

id: 830649
0.4 kg Warranty: 6 month (s)
Multi-purpose digital USB microscope with 2 Mpx lens and 10× - 230× digital magnification.
USD 76.00
Contact
sales team
USD 76.00
Contact
sales team
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Delivery
Payment
Warranty
Overview

Microsafe ShinyVision MM-2288-5X-B is the multi-purpose digital USB microscope with 2 Mpx lens and 10× - 230× digital magnification. This microscope can be an effective alternative to DigiMicro products, supporting both photo- and video. The ergonomic digital USB-microscope can be used for scientific, technological and educational purposes, as well as repairing electronic circuits.

Microsafe ShinyVision MM-2288-5X-B Digital USB Microscope Features

  • The illumination regulator and the "photo" button on USB-cable
  • 13 languages support
  • Semi-auto calibration
  • Real time measurement (dynamic measurement)
  • Full range magnification (10X~230X) calibration
  • ShinyVision software for saving video files on hard disk in .avi format and preview with built-in player (goes in package)
  • Maximum camera resolution of 1600×1200

Microsafe ShinyVision MM-2288-5X-B Digital USB Microscope Technical Specifications

Resolution 2 Mpx
Magnification 10-60× and 230×
Illumination 8 LEDs
Power input < 0.8 V
Interface USB 2.0 cable, 150 cm long
Possible pixel resolution (H)×(L) 1600×1200, 1280×1024, 640×480, 320×240
White balance Auto
Exposure Auto
Picture format JPG, BMP, PNG, GIF
Video format AVI
Operation system Windows XP/Vista/Windows 7
Processor specifications Pentium IV 1.6 GHz, Celeron 1.4 GHz,
AMD Athlon 1.4 GHz and higher (Core 2 recommended)
RAM 512 MB or above
Hard drive space 10 GB or above
Connection port USB (2.0 or higher) and CD-ROM Drive
Video card 32-bit or above
Dimensions, mm 131 × 32
Weight, kg 0.400 kg

Microsafe ShinyVision MM-2288-5X-B Digital USB Microscope Package Content

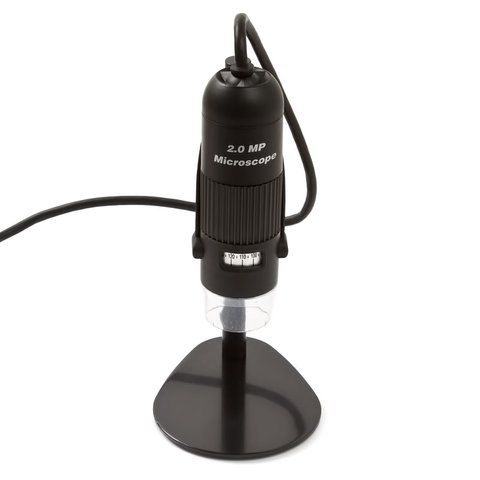

  • USB Microscope Microsafe ShinyVision MM-2288-5X-B

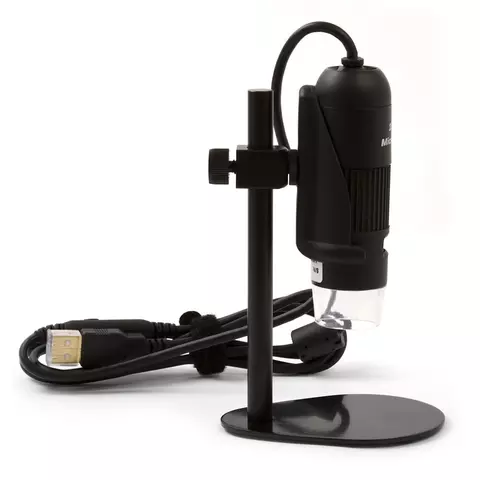

  • Stand
  • Adapter for attaching microscope to stand
  • Portable tripod for vertical installation (6 elements, 2 cm each)
  • Attachments for camera lens (3 pcs.)
  • Protective cover for camera lens
  • Fabric case
  • User's manual
  • CD with software
  • Calibration template (3 pcs.)
Specifications
Type
  • USB
Maximum Zoom Ratio
  • up to 400X
Illumination
  • upper light
Zoom Rate Control Method
  • smooth adjustment of multiplicity
Image Sensor Size
  • 2.0 MP
