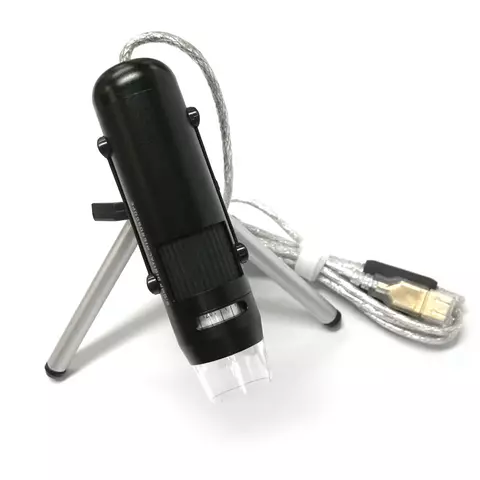

USB Digital Microscope Microsafe ShinyVision MM-8500U (5 MPix)

id: 828033
0.4 kg Warranty: 6 month (s)
Multi-purpose digital USB microscope with 5 Mpx lens and 10× - 230× digital magnification.
USD 120.00
Contact
sales team
USD 120.00
Contact
sales team
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Delivery
Payment
Warranty
Overview

Microsafe ShinyVision MM-8500U 5 MPx is the multi-purpose digital USB microscope with 5 Mpx lens and 10× - 230× digital magnification. This microscope can be an effective alternative to DigiMicro products, supporting both photo- and video. The ergonomic digital USB-microscope can be used for scientific, technological and educational purposes, as well as repairing electronic circuits. Illumination is performed with 8 LEDs located on the microscope body.

Software

Download Microsafe ShinyVision MM-8500U USB digital microscope software

Features

  • The illumination regulator and the "photo" button on USB-cable
  • Capture with date code
  • Schedule capture
  • 13 languages support
  • Semi-auto calibration
  • Real time measurement (dynamic measurement)
  • Full range magnification (10X~230X)calibration
  • ShinyVision software for saving video files on hard disk in .avi format and preview with built-in player (goes in package)
  • Maximum camera resolution of 1600×1200

Technical Specifications

Resolution 5 Mpx
Magnification 10-60× and 230×
Illumination 8 LEDs
Power input < 0.8 V
Interface USB 2.0 cable, 150 cm long
Possible pixel resolution (H)×(L) 2592×1944, 2048×1536, 1600×1200, 1280×1024, 640×480, 320×240
White balance Auto
Exposure Auto
Picture format JPG, BMP, PNG, GIF
Video format AVI
Operation system Windows XP/Vista/Windows 7
Processor specifications Pentium IV 1.6 GHz, Celeron 1.4 GHz,
AMD Athlon 1.4 GHz and higher (Core 2 recommended)
RAM not less than 256 MB
Hard drive space 100 MB
Connection port USB (2.0 or higher) and CD-ROM Drive
Video card 32-bit or higher
Dimensions, mm 131 × 32
Weight, kg 12.5

Package Contents

  • USB Microscope Microsafe ShinyVision MM-8500U
  • Stand
  • Adapter for attaching microscope to stand
  • Portable tripod for vertical installation (6 elements, 2 cm each)
  • Protective cover for camera lens
  • Fabric case
  • User's manual
  • CD with software
  • Calibration template (3 pcs.)
Specifications
Type
  • USB
Maximum Zoom Ratio
  • up to 200X
Illumination
  • upper light
Zoom Rate Control Method
  • smooth adjustment of multiplicity
Image Sensor Size
  • 5.0 MP
