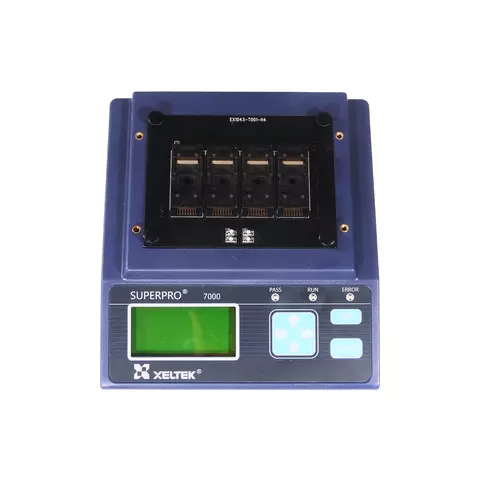

USB Interfaced Universal Programmer Xeltek SuperPro 7000

Xeltek SuperPro 7000 is a device for programming EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA Configuration PROM, FLASH memory (NOR, NAND), BPROM, NVRAM, SPLD, CPLD, EPLD, FWH, microcontrollers, standard micrologic circuits.

Compatibility

The programmer supports operation with almost 50.000 devices from more than 200 manufacturers.

Features

• Universal 144-pin driver supports the latest microchips with different package types.
• Possibility to connect 99% of the existing microelectronic circuits in case you buy a corresponding adapter.
• Powerful programming processor supports eMMC / NAND files up to 256 GB
• Supports Intel LR1 and LR2 eMMC modules (up to 64 GB)
• Powerful new algorithm to program up to four chips simultaneously
• Customized 4-socket gang adapter + programming algorithm (Optional)
• Three operation modes: PC hosted mode for research, stand-alone mode for manufacturing, Local Area Network (LAN) mode for access to LAN local or remote control.
• Self-calibration.
• Automatic chip detection.
• Improved overvoltage / overcurrent and ESD protection to avoid programmer damage.
• Serial number generator.
• Password can be set for project files.
• Software updates.
• RoHS compatible, CE, ISO 9001, ISO 14001 certificates.

Application

• Device repair – re-flashing microchips, microcontrollers.
• Flashing new microchips.
• Serial manufacturing - microchips, microcontrollers programming.
• Restoring data from microchips of solid-state drives like memory cards, USB flash drives.

Technical Specifications

User Manual

Download Xeltek SuperPro 7000 User Manual.

Package Contents

• USB Interfaced Universal Programmer Xeltek SuperPro 7000 — 1 pc.
• Adapter EX0001 DIP48 — 1 pc.
• AC Power Adapter — 1 pc.
• USB Cable — 1 pc.
• CD with Software — 1 pc.
• User Manual — 1 pc.

Optional Accessories

• Adapters
• Compact-Flash (CF) card
