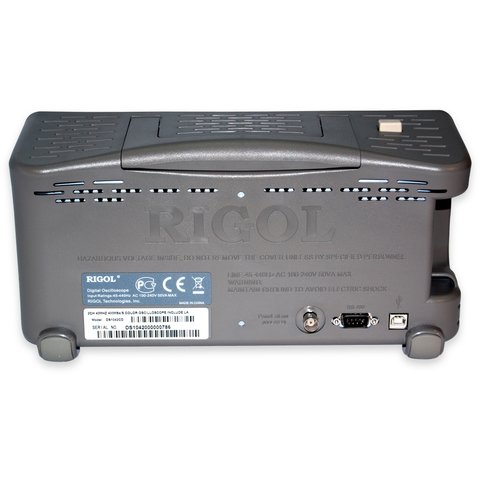

Rigol DS1022CD Osciloscopio de Señal Mixta

Código: 810629
Rigol DS1022CD Osciloscopio de Señal Mixta
Información general
Descripción
Características
Entrega
Pago
Garantía
Descontinuado
Comunicarse
con asesor
Información general
4.6 kg 110, 220 V Garantía: 36 meses
Velocidad de muestreo: en el tiempo real 400MHz, en el modo equivalente 25GHz. Tiempo de subida - 14ns. Time Base Range - 20 ns/div to 50 s/div
Descontinuado
Comunicarse
con asesor
Comparar
Comparar
Descontinuado
Comunicarse
con asesor
No es posible calcular el coste de envío
Descripción

RIGOL DS1022CD digital oscilloscope provides exceptionally accurate waveform viewing and measurements in a compact, lightweight package. RIGOL DS1022CD is ideal for production tests, field service, research and design and all of the applications involving analog/digital circuits test and troubleshooting, as well as education and training.

RIGOL DS1022CD Digital Oscilloscope Features

  • Ultra compact design, small dimensions
  • Bandwidth: 25 MHz
  • Dual channels
  • Real-time sample rate: 400 MSa/s maximum
  • Equivalent time sample rate: 25 GSa/s maximum
  • Memory depth: 1 M points (Single Channel), 512 K points (Dual Channels)
  • 20 automatic measurements
  • Versatile trigger modes: Edge, Pulse, Slope, Video, Alternate, Pattern and Duration
  • Adjustable trigger sensitivity
  • 10 waveforms, 10 setups, BMP and CSV storage
  • Math functions: Add, Subtract, Multiply, FFT
  • Automatic self calibration
  • Special digital filter and waveform recorder
  • Built-in hardware frequency counter
  • 5.7' color LCD
  • Standard interface: USB Device, RS-232; USB Host, to support USB flash memory and USB printer
  • Multi-language user interface, built-in help system

RIGOL DS1022CD Digital Oscilloscope User Manual

Download RIGOL DS1022CD digital oscilloscope user manual

RIGOL DS1022CD Digital Oscilloscope Technical Specifications

Bandwidth 25 MHz
Real time sample rate 400 MSa/s
Equivalent sample rate 25 GSa/s
Memory depth
  • 1M points (single channel)
  • 512K points (dual channels)
  • 512K points (logic analyzer)
Rise time 14 ns
Time base range 20 ns/div - 50 s/div
Trigger modes Edge, Video, Pulse Width, Slope, Alternate, Pattern, Duration
Input impedance 1 M Ω || 15 pF
Vertical sensitivity 2 mV/div - 5 V/div
Vertical resolution 8 bits
Maximum input voltage 400 V (DC+AC peak)
Automatic measurements Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vrms, Vavg, Vover, Vpre, Freq, Period, Rise, Fall, +Width, -Width, +Duty, -Duty, DelayA, DelayB
Math Add, Subtract, Multiply, FFt
Storage
  • internal: 10 waveforms and 10 setups
  • USB: BMP, CSV, waveforms and setups
Display 5.7-inch color LCD, 320 x 234
Power source 100-240 V / 50 VA max
Weight 2.3 kg
Dimensions 303 x 154 x 133 mm

RIGOL DS1022CD Digital Oscilloscope Package

  • RIGOL DS1022CD digital oscilloscope (1 pc.)
  • Power cable (1 pc.)
  • Test leads (2 pcs.)
  • USB data cable (1 pc.)
  • User manual (1 pc.)
  • Software (1 pc.)
Leer más
Descripción

RIGOL DS1022CD digital oscilloscope provides exceptionally accurate waveform viewing and measurements in a compact, lightweight package. RIGOL DS1022CD is ideal for production tests, field service, research and design and all of the applications involving analog/digital circuits test and troubleshooting, as well as education and training.

RIGOL DS1022CD Digital Oscilloscope Features

  • Ultra compact design, small dimensions
  • Bandwidth: 25 MHz
  • Dual channels
  • Real-time sample rate: 400 MSa/s maximum
  • Equivalent time sample rate: 25 GSa/s maximum
  • Memory depth: 1 M points (Single Channel), 512 K points (Dual Channels)
  • 20 automatic measurements
  • Versatile trigger modes: Edge, Pulse, Slope, Video, Alternate, Pattern and Duration
  • Adjustable trigger sensitivity
  • 10 waveforms, 10 setups, BMP and CSV storage
  • Math functions: Add, Subtract, Multiply, FFT
  • Automatic self calibration
  • Special digital filter and waveform recorder
  • Built-in hardware frequency counter
  • 5.7' color LCD
  • Standard interface: USB Device, RS-232; USB Host, to support USB flash memory and USB printer
  • Multi-language user interface, built-in help system

RIGOL DS1022CD Digital Oscilloscope User Manual

Download RIGOL DS1022CD digital oscilloscope user manual

RIGOL DS1022CD Digital Oscilloscope Technical Specifications

Bandwidth 25 MHz
Real time sample rate 400 MSa/s
Equivalent sample rate 25 GSa/s
Memory depth
  • 1M points (single channel)
  • 512K points (dual channels)
  • 512K points (logic analyzer)
Rise time 14 ns
Time base range 20 ns/div - 50 s/div
Trigger modes Edge, Video, Pulse Width, Slope, Alternate, Pattern, Duration
Input impedance 1 M Ω || 15 pF
Vertical sensitivity 2 mV/div - 5 V/div
Vertical resolution 8 bits
Maximum input voltage 400 V (DC+AC peak)
Automatic measurements Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vrms, Vavg, Vover, Vpre, Freq, Period, Rise, Fall, +Width, -Width, +Duty, -Duty, DelayA, DelayB
Math Add, Subtract, Multiply, FFt
Storage
  • internal: 10 waveforms and 10 setups
  • USB: BMP, CSV, waveforms and setups
Display 5.7-inch color LCD, 320 x 234
Power source 100-240 V / 50 VA max
Weight 2.3 kg
Dimensions 303 x 154 x 133 mm

RIGOL DS1022CD Digital Oscilloscope Package

  • RIGOL DS1022CD digital oscilloscope (1 pc.)
  • Power cable (1 pc.)
  • Test leads (2 pcs.)
  • USB data cable (1 pc.)
  • User manual (1 pc.)
  • Software (1 pc.)
Características
Diagonal de pantalla
  • 5.6" pantalla TFT
Cantidad de canales
  • de 2 canales
  • con analizador lógico de 16 canales
Capacidad de memoria
  • 1 MB
Banda de frecuencias
  • 25 MHz
Tipo
  • de mesa
  • de señales mixtas
Frecuencia de muestreo
  • 400 MSa/s
