Digital Multimeter Accta AT-202
id: 910796
Digital Multimeter Accta AT-202
Overview
Description
Specifications
Delivery
Payment
Warranty
Price coming soon
Contact
sales team
sales team
Overview
0.3 kg Warranty: 12 months
Portable True RMS digital multimeter with 1999 display counts, 600 V/10 A Read more
Description

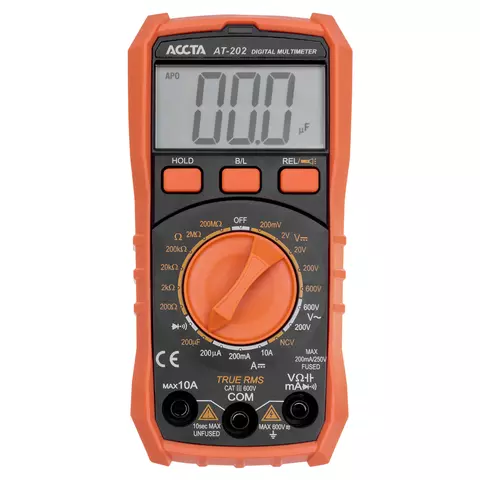

Accta AT-202 is a high-performance multipurpose handheld True RMS digital 600 V/10 A multimeter with a manual range selection function and a 1999-count large LCD display. This handy portable multimeter can measure direct voltage current (DCV), alternating current voltage (ACV), direct current amperage (DCA), resistance, and capacitance and perform diode and continuity testing.
Features
- High-precision True RMS measurements
- Multiple functions, options, and settings
- Relative value function
- Data retention
- Overload protection
- Backlit display and flashlight lighting
- Automatic shutdown
- Low-level battery indication
- Convenient and intuitive front-panel test lead jack design for good contact and quick measurements
- Special pen on the back panel for convenient storage and transportation of test leads
- Bracket design enabling convenient placement, easy data reading, and effortless operation
- Pocket-sized and lightweight
Specifications
| Technical Specifications | |||||
|---|---|---|---|---|---|
| 201 | 202 | 203 | 205A | ||
| Measurements | Range | Precision | |||
| DC voltage | 200 mV | 200 mV | 200 mV | 600 mV | ±(0.5%+5) |
| 2 V/20 V/200 V | 2 V/20 V/200 V | 2 V/20 V/200 V | 6 V/60 V | ±(0.5%+3) | |
| 600 V | 600 V | 600 V | 600 V | ±(1%+10) | |
| AC voltage | 200 V/600 V | 200 V/600 V | 200 V/600 V | 6 V/60 V/600 V | ±(1.2%+10) |
| DC current | 200 μA | 200 μA | 200 μA | 600 μA/6000 μA | ±(1%+10) |
| 200 mA | 200 mA | 200 mA | 60 mA/600 mA | ±(1.2%+8) | |
| 10 A | 10 A | 10 A | 6 A/10 A | ±(2%+5) | |
| AC current | 600 μA/6000 μA | ±(1%+10) | |||
| 60 mA/600 mA | ±(1.5%+15) | ||||
| 6 A/10 A | ±(3%+10) | ||||
| Resistance | 200 Ω | 200 Ω | 200 Ω | 600 Ω | ±(0.8%+5) |
| 2 kΩ/20 kΩ/200 kΩ | 2 kΩ/20 kΩ/200 kΩ | 2 kΩ/20 kΩ/200 kΩ | 6 kΩ/60 kΩ/600 kΩ | ±(0.8%+3) | |
| 2 MΩ | 2 MΩ | 20 MΩ | 6 MΩ/60 MΩ | ±(1%+5) | |
| 200 MΩ | ±(5%+30) | ||||
| Capacitance | 200 uF | 10 nF | ±(5%+40) | ||
| 100 nF/1 μF/10 μF/100 μF/200 μF | ±(3.5%+20) | ||||
| 2 mF | ±(5%+40) | ||||
| Frequency | 20 kHz | 10 Hz/100 Hz/1kHz | ±(5%+10) | ||
| 10 kHz/20 kHz/100 kHz/2 MHz | ±(1%+10) | ||||
| Temperature | -20 to 1000°C | -20 to 1000°C | ±(1%+5) | Product Specifications | |
| Display count | 1999 | ||||
| Operating temperature | 0 to 40°C | ||||
| Sampling rate | 3 times/sec | ||||
| Power supply | 2 AAA 1.5 V LR03 batteries | ||||
| Size | 146 × 72 × 50 mm | ||||
| Weight | 230 g (with batteries) | ||||
Package Contents
- Accta AT-202 multimeter — 1 pc.
- Test leads — 1 pair
- User manual — 1 pc.
- AAA Batteries 1.5 V — 2 pcs.
Specifications
| Type |
|
| Range Selection |
|
| Digit Capacity |
|
| DC Voltage |
|
| AC Voltage |
|
| Resistance |
|
| Capacitance |
|
| DC |
|
| AC |
|
| Frequency |
|
| Inductance |
|
| Temperature |
|
| Power |
|
| Duty cycle |
|
| True RMS |
|
| Backlight |
|
| PC connection |
|
| Diode test |
|
| Analog bar graph |
|
| Transistor check |
|
| Continuity test |
|
| NCV |
|
| Battery Testing |
|
