Digital Multimeter UNI-T UT71B
id: 917827
Digital Multimeter UNI-T UT71B
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Price coming soon
Contact
sales team
sales team
Overview
Video
Video
0.384 kg Warranty: 24 months
This digital multimeter measures AC/DC current and voltage, resistance, capacitance, inductance, frequency, temperature, tests diodes and continuity. Read more
Description
UNI-T UT71B digital multimeter measures AC/DC current and voltage, resistance, capacitance, inductance, frequency, temperature, tests diodes and continuity.
Please note that the standard temperature probe from the multimeter package contents allows measuring temperature up to 300 ºC. In case you require measuring temperatures above that value, please, buy Uni-T UT-T03 Temperature Probe.
Features
- Functions:
- AC/DC current and voltage
- resistance
- capacitance
- frequency
- temperature (ºC or ºF)
- continuity test (with buzzer)
- diode test
- Auto ranging
- Fused 10 A range
- Data Hold function
- Peak Hold function
- Auto power off
- Current measurement alarm
- Data logging and recall
- True RMS
- Max/Min mode
- Relative mode
- Analogue bar graph
- Sleep mode
- Low battery indication
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Technical Specifications
| Display | 20000 digit LCD, double backlight, 73 × 50 mm | |
| DC voltage | Range | 200 mV / 2 V / 20 V / 200 V / 1000 V |
| Accuracy | ±(0.5%+5) | |
| AC voltage | Range | 2 V / 20 V / 200 V / 1000 V |
| Accuracy | ±(0.6%+40) | |
| AC bandwidth | 100 kHz | |
| DC current | Range | 200 µA / 2000 µA / 20 mA / 200 mA / 10 A |
| Accuracy | ±(0.15%+20) | |
| AC current | Range | 200 µA / 2000 µA / 20 mA / 200 mA / 10 A |
| Accuracy | ±(0.8%+15) | |
| Resistance | Range | 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ / 20 MΩ |
| Accuracy | ±(0.4%+20) | |
| Capacitance | Range | 20 nF / 200 nF / 2 µF / 20 µF / 200 µF / 2 mF / 20 mF |
| Accuracy | ±(0.4%+20) | |
| Frequency | Range | 20 Hz / 200 Hz / 2 kHz / 20 kHz / 200 KHz / 2 MHz / 20 MHz / 200 MHz |
| Accuracy | ±(0.1%+15) | |
| Temperature, ºC | Range | -40~1000 |
| Accuracy | ±(1%+30) | |
| Temperature, ºF | Range | -40~1832 |
| Accuracy | ±(1.5%+50) | |
| Duty cycle | 10%~90% | |
| Power | 9 V battery: 6F22 | |
| Dimensions (H × W × D), mm | 200 × 93 × 40 | |
| Weight, g | 384 | |
User Manual
Download UNI-T UT71B digital multimeter user manual.
Sofware
Download UNI-T UT71B sofware.

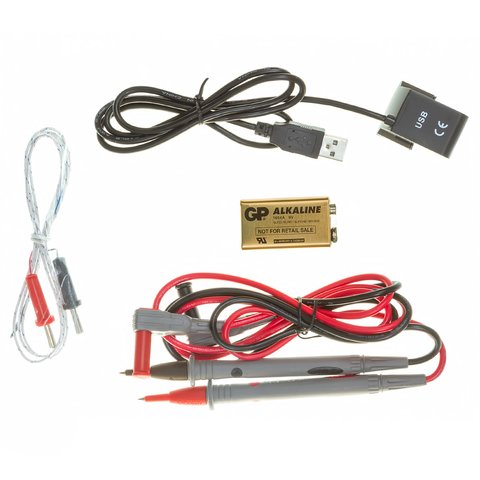

Package Contents
- Multimeter UT71B
- Test lead
- Point contact temperature probe
- USB interface cable
- Battery
- Holster
- User manual
- Carrying bag
