Overview
10 kg Warranty: 12 months
Splicer with six motors ensuring accurate core-to-core fiber alignment, enabling fully automatic operation with splicing taking only 6 s, and heating just 18 s Read more
Description

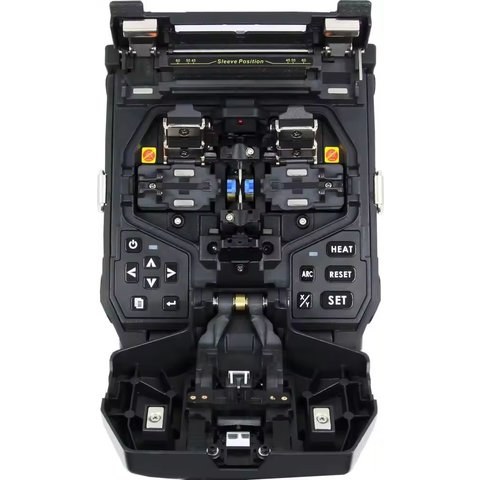

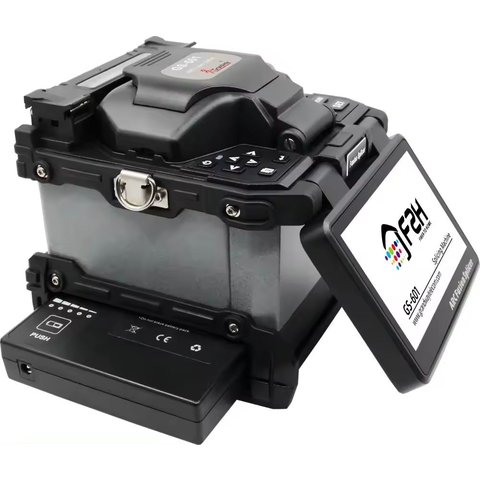

Grandway GS-601 is an optical fiber fusion splicer featuring precise core-to-core alignment facilitated by the use of six motors. It operates fully automatically, enabling rapid splicing and heating, while also offering energy savings of up to 30%. The device is compatible with various types of fiber and is convenient to use, thanks to its large opening angle. Additionally, its robust housing provides protection against vibration, dust, and water.
Features
- Precise core-to-core alignment using 6 motors
- Fully automatic operation: fast splicing in 6 seconds and heating in 18 seconds
- Equipped with an industrial quad-core CPU for 30% power savings
- Applicable to bare fiber, pigtails, drop cables, SOC, etc
- Inductive automatic heater with adjustable heating time and temperature
- Multi-in-one metal precise fiber holder suitable for 0.25/0.9/2/3 mm and drop cables
- Automatic and real-time ARC calibration
- Real-time monitoring of heating temperature
- Detachable 5200 mAh Li-battery (>250 splicing and heating cycles)
- Large opening angle for convenient splicing operations
- Sturdy, durable, and spacious carrying case
- Automatic fiber type identification with clear fiber imaging and rapid fiber gapping
- Stable and low splice loss ensuring excellent splicing performance
- High-resolution 5-inch color touch screen
- Anti-shock, anti-vibration, dustproof, and waterproof design
Technical Specifications
| Alignment Method | 6 motors, core-to-core alignment |
| Applicable Fibers | SM (G.652), MM (G.651), DS (G.653), NZDS (G.655), BIF (G.657) |
| Cladding Diameter | 80-150 μm |
| Coating Diameter | 160-3000 μm |
| Cleaved Length | 5-16 mm (coating diameter<250 μm), 16 mm (coating diameter: 250-3000 μm) |
| Typical Splice Loss | SM: 0.02 dB; MM: 0.01 dB; DS/NZDS/BIF: 0.04 dB |
| Return Loss | >60 dB |
| Splicing Program | 40 groups |
| Operation Mode | Manual/ Automatic |
| Auto-heating | Available |
| Typical Splice Time | 6 seconds |
| Typical Heating Time | 18 seconds for 60 mm and 40 mm shrinkable sleeves |
| Fiber Magnification | 250x (X or Y view), 125x (X and Y view) |
| Viewing Display | dual high sensitivity camera, 5" 800 × 480 touchscreen LCD |
| Data Storage | 4000 groups data records |
| Loss Evaluation | available |
| Tension Test | 1.8~2.25 N |
| Interface | GUI menu interface, easy for operation |
| Battery Capacity | 5200 mAh Li-battery, 250 cycles splicing and heating |
| Power Supply | adaptor, input: AC100-240 V(50/60 Hz), output: DC11-13.5 V |
| Electrode Life | more than 4000 ARC discharges, easy to replace |
| Terminals | USB 2.0 port, for software upgrading, records exporting |
| Operating | altitude: 0-5000 m, humidity: 0-95%, temperature: -10~+50℃; wind: max 15 m/s |
| Dimensions | 156 mm (L) × 141 mm (W) × 156 mm (H) |
| Weight | 2.45 kg (including battery) |
User Manual
Download Grandway GS-601 user manual.
Package Contents
- Fusion Splicer Grandway GS-601 — 1 pc.
- Fiber Cleaver — 1 pc.
- Fiber Stripper — 1 pc.
- Spare Electrodes — 1 pc.
- Cooling Tray — 1 pc.
- Drop Cable Stripper — 1 pc.
- Carrying Box — 1 pc.
- Power Adapter — 1 pc.
- Power Plug — 1 pc.
- User Manual — 1 pc.
- Strap — 1 pc.
- Cleaning Brush — 1 pc.
