Overview
0.6 kg Warranty: 24 months
Compact laser level with powerful green LD laser, suitable for working in large or bright places. Read more
Description

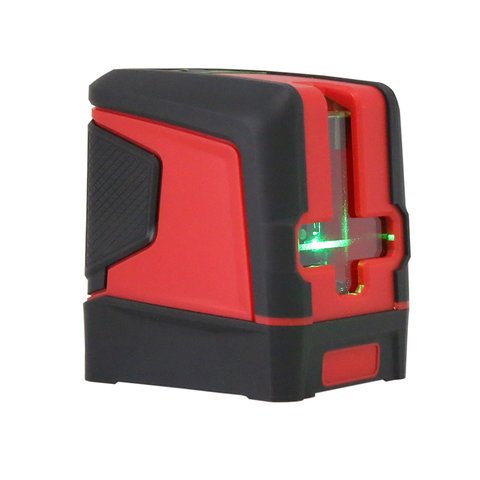

UNI-T LM570LD-II is a compact laser level with powerful green LD laser, suitable for working in large or bright places.
Its applications include: horizontal, vertical, cross line projection for decoration, building construction, home decoration, renovation, furniture installation, and flooring.
Features
- Self-leveling mode & manual mode.
- Outdoor pulse mode.
Technical Specifications
| Laser type | Green laser LD |
| Laser wave length | 520 nm ± 5 nm |
| Laser power | 20 mW |
| Laser class | Class II |
| Number of laser lines | 2 |
| Horizontal/Vertical accuracy | ≤±3 mm @ 10 m |
| Laser line width | <4 mm/10 m (at 80~100 lux indoor) |
| Horizontal/Vertical emission angle | ≥120° |
| Working distance (Line) | 10 m (at 30~100 lux indoor) |
| Operating temperature | -10°C~+40°C |
| Storage temperature | -20°C~+70°C |
| Self-leveling time | 3 s |
| Self-leveling range | 3°±1° |
| Battery | 1.5V AA (LR6) × 2 pcs. |
| Dimensions | 85.5 mm × 62 mm × 90.3 mm |
| Weight | 0.24 kg±5% |
| Operating time | 4 h |
User Manual
Download UNI-T LM570LD-II user manual.
Package Contents
- Laser Level UNI-T LM570LD-II — 1 pc.
- Wall Mount — 1 pc.
- User Manual— 1 pc.
- Carrying Bag — 1 pc.
- Batteries — 2 pcs.
