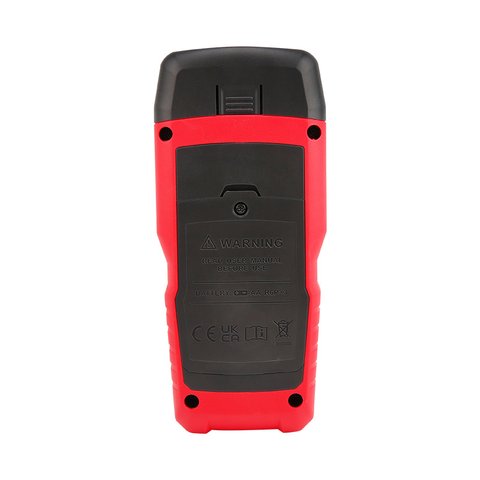

TDR Cable Tester UNI-T UT685B KIT
sales team
The UNI-T UT685B KIT can test various types of cables, including twisted pair cable, coaxial cable, and POE network cable. It enables you to locate the cable, detect the cable length and line sequence, and confirm whether it is POE and complies with POE standards. Additionally, it is equipped with integrated RJ11, RJ45, and coax test ports to support virtually any low-voltage cable testing without requiring awkward adapters.
The UT685B KIT is suitable for measuring the grounding resistance in various industries and scenarios, such as telecommunications, electricity, meteorology, computer rooms, oil fields, power distribution lines, tower transmission lines, gas stations, factory grounding grids, and lightning rods.
Features
- 2.8-inch backlit LCD.
- Graphical interface.
- Cable length test.
- Tests RJ11, RJ45, and coaxial cable types.
- Identifies POE standards.
- Digital hunt.
- Range: 500 m.
- Resolution: 0.33 m.
- 70V DC input protection.
- TDR technology: no blind area testing.
Technical Specifications
| Tested cable type | Twisted pair cable: 1. UTP (unshielded cable) 2. FTP (aluminum foil shielded cable) 3. SSTP (double-shielded network cable) |
| Coaxial cable: 50 Ω, 75 Ω, 93 Ω | |
| Cable length test | Range: 500 m |
| Resolution: 0.33 m | |
| Accuracy: ± 4%, or 0.6 m | |
| POE detection | POE power detection |
| POE standard: 802.3AF | |
| POE standard: 802.3AT | |
| Ethernet port test | √ |
| Cable location | √ |
| Port blinks | √ |
| Input protection | 70 V DC |
| Display | 2.8" LCD |
| Auto power off | Around 10 minutes |
| Power | 3 pcs. AAA alkaline batteries |
| Dimensions | 180 mm × 84 mm × 37.8 mm |
User Manual
Download UNI-T UT685B KIT User Manual.
Package Contents
- TDR Cable Tester UNI-T UT685B KIT — 1 pc.
- UT683R Receiver — 1 pc.
- 1.5V AA Alkaline Battery — 3 pcs.
- RJ45 Adapting Cable — 1 pc.
- RJ11 Adapting Cable — 1 pc.
- RJ11 Adapting Cable (adapted to alligator clip) — 1 pc.
- Plug, F-connector to F-connector — 1 pc.
- Micro USB Charging Cable — 1 pc.
- User Manual — 1 pc.
- Carrying Bag — 1 pc.
| Cable length measurement |
|
| Twisted pair cable testing |
|
| Coaxial cable testing |
|
| Locator function |
|
