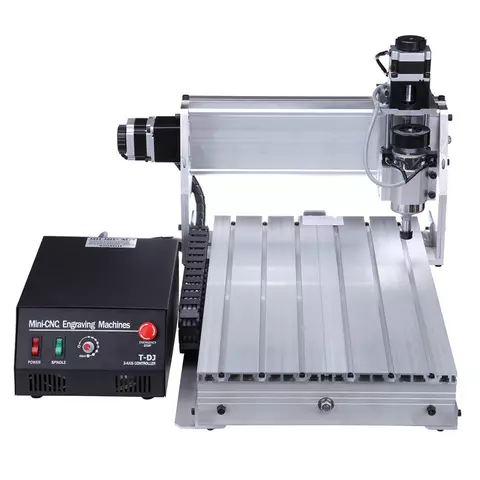

3-axis CNC Router Engraver ChinaCNCzone 4030 (800 W)

id: 857222
90 kg 220 V Warranty: 6 month (s)
Designed for work on small areas. Suitable for various materials, such as wood, PMMA or other plastic, MDF board, PVC, plywood, etc. 800 W water cooled spindle.
USD 1450.00
Notify
when in stock
USD 1450.00
Notify
when in stock
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Delivery
Payment
Warranty
Overview

CNC Router Engraver ChinaCNCzone 4030 is a powerful (800 W) 3-axis device which is designed for work on small areas. It is suitable for various materials, such as wood, PMMA or other plastic, MDF board, PVC, plywood, etc.

Features

  • Compact size
  • 800 W water cooled spindle
  • High precision stepping motor for more precise engraving
  • Simple installation and operation
  • Precision 1204 ballscrew

Technical Specifications

Effective working travel 390 × 280 × 55 mm
Max. workpiece dimensions 390 × 280 <70 mm
Work table dimensions 530 × 320 mm
Material thickness < 70 mm
Stepping motor type 57 two-phase 2.5 A, super low-noise
Spindle speed 1000 ~ 8000 RPM
Engraving accuracy > 0.05 mm
Operating voltage AC 110/220 V
Size 136 × 116 × 92 mm
Weight 27 kg

Package Contents

  • CNC Router Engraver 4030 – 1 pc.
  • Control box – 1 pc.
  • Axis motors – 3 pcs.
  • Power cable – 1 pc.
  • Tool box and tools – 1 pc.
  • Software - 1 pc.
  • User manual - 1 pc.
Specifications
Power
  • 800 W
Axis quantity
  • 3-axis
