3-axis CNC Router Engraver ChinaCNCzone 6040 (800 W)
id: 857207
3-axis CNC Router Engraver ChinaCNCzone 6040 (800 W)
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
USD 1590.00
Overview
Video
Video
Video
37 kg 220 V Warranty: 6 months
Designed for work on large areas. Suitable for various materials, such as wood, PMMA or other plastic, MDF board, PVC, plywood, etc. 800 W water cooled spindle. Read more
USD 1590.00
Buy wholesale and save
Description

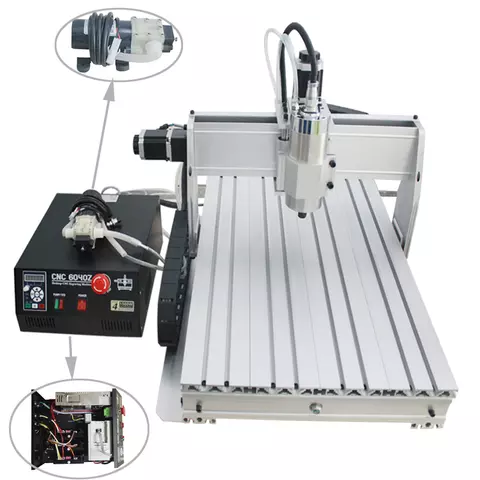

CNC Router Engraver ChinaCNCzone 6040 is a powerful (800 W) 3-axis device which is designed for use by professional engineers. It is suitable for various materials, such as wood, PMMA or other plastic, MDF board, PVC, plywood, etc.
Features
- 800 W water cooled spindle
- High precision stepping motor for more precise engraving
- Simple installation and operation
- Ballscrew Z-axis
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Technical Specifications
| Effective working travel | 580 × 400 × 75 mm |
| Max. workpiece dimensions | 580 × 400 < 90 mm |
| Work table dimensions | 750 × 480 mm |
| Material thickness | < 100 mm |
| Stepping motor type | 57 two-phase 3 A, super low-noise |
| Spindle speed | 1000-24000 RPM |
| Engraving accuracy | > 0.04 mm |
| Operating voltage | AC 110/220 V |
| Size | 136 × 116 × 92 mm |
| Weight | 55 kg |
Package Contents
- CNC Router Engraver 6040 – 1 pc.
- Control box – 1 pc.
- Axis motors – 3 pcs.
- 1.5 kW inverter – 1 pc.
- Power cable – 1 pc.
- Tool box and tools – 1 pc.
- Connection wires - 2 pcs.
- Software - 1 pc.
- User manual - 1 pc.
