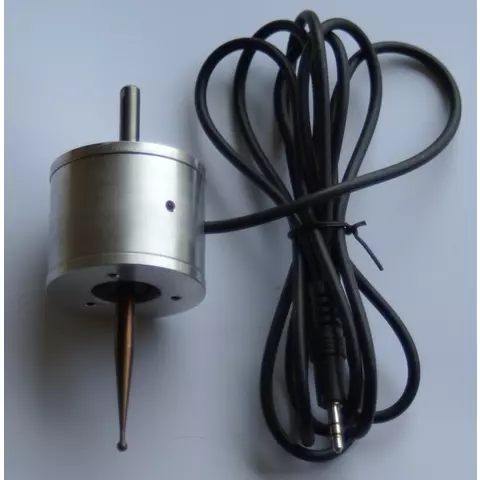

3D Digitizing Touch Probe for CNC Router

id: 884311
0.2 kg
High-quality aluminum touch and tool probe with 1/4 shank and 1/8" hardened probe ball tip.
USD 220.00
Notify
when in stock
USD 220.00
Notify
when in stock
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Delivery
Payment
Warranty
Overview

High-quality aluminum touch and tool probe with 1/4 shank and 1/8" hardened probe ball tip. This tool is both an accurate 3-axis touch probe and a tool height setting pad. It is easily converted from one use to the other in just a few seconds by simply swapping tips and adding or removing the screw-on arbor. Probe is designed with normally closed internal switch contacts. When probe comes in contact with any work surface the internal switch opens. Accuracy when probing locations is ~.001 and repeatability is ~.0005". This probe works with Mach3, Dynomotion, and other CNC control systems with probing routines.

Features

  • Comes with attached shielded cable with 3.5 mm jack on the end
  • Includes 3.5 mm female adapter to wire to your controller
  • Includes extra contactor (holds probe tip) in case of a crash you can replace the contactor.
  • LED indicates trigger
  • Adjustable concentric screws

Package Contents

  • 3D Digitizing Touch Probe — 1 pc.
