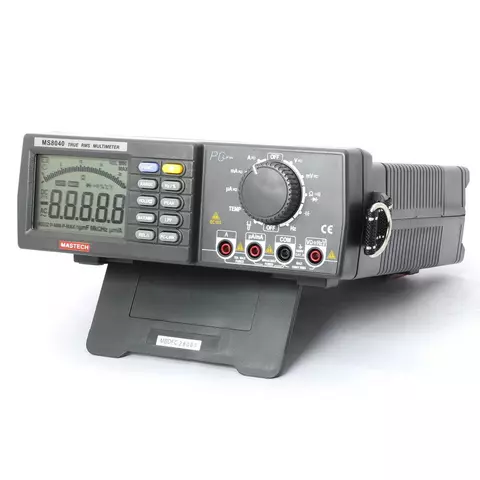

4.5 Digit Autoranging Bench Top Multimeter MASTECH MS8040

id: 811503
4 kg 220 V Warranty: 6 month (s)
220 mV-1000 V, 220 microA-10 A, 220 Ohm-220 MOhm, 22 nF-220 mF, 220 Hz-220 MHz, -30°~1000°C
Price coming soon
Contact
sales team
Price coming soon
Contact
sales team
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Substitution
Video
Delivery
Payment
Warranty
Overview
  • Designed to international safety stand IEC61010-1 CAT II 1000V/CAT III 600V
  • Digital and analog display, 22000 counts and 44 bar graph
  • Autorange and manual range
  • True RMS for AC voltage and current
  • RS232 standard interface and PC Windows software
  • Data hold
  • Max\Min relative measurement
  • AC voltage AC current with 1 kHz low passed filter
  • AC voltage AC current peak measurement
  • Voltage/current linear frequency measurement
  • Logic frequency/duty cycle measurement
  • Diode and line continuity test
  • Temperature measurement
  • Resistance measurement
  • Capacitance measurement
  • Power source: AC or DC supply

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

SPECIFICATION OF MS8040
DC Voltage
220 mV/2.2 V/22 V/220 V/1000 V
± 0.05%
AC Voltage TRMS
220 mV/2.2 V/22 V/220 V/700 V
± 0.6%
DC Current
220 µA/2200 µA/22 mA/220 mA/
10 A
± 0.2%
± 0.5%
AC Current
220 µA/2200 µA/22 mA/220 mA/
10 A
± 1.5%
± 2%
Resistance
220 Ohm/2.2 kOhm/22 kOhm/220 kOhm/
2.2 MOhm
22 MOhm/220 MOhm

± 0.3%
± 1.0%
Capacitance
22 nF/220 nF/2.2 µF/22 µF/
220 µF/2.2 mF/22 mF/220 mF
± 1.5%
± 3%
Logic Frequency
220 Hz/2.2 kHz/22 kHz/220 kHz/
2.2 MHz/22 MHz/220 MHz
± 0.1%
Temperature
-30°~1000°C
± 0.2°C
Specifications
Type
  • digital
  • desktop
Measured Values
  • DC voltage
  • AC voltage
  • AC
  • DC
  • resistance
  • capacitance
  • frequency
  • porosity
  • temperature
Additional Functions
  • acoustic continuity test
  • data hold
  • connection to PC (RS232)
  • mnemonic
  • max / min
  • RMS measurement
  • diode test
  • peak hold
Range Selection
  • auto range
Digit Capacity
  • 22 000
DC Voltage
  • up to 1000 V
Resistance
  • up to 220 MOhm
Capacitance
  • up to 220 000 μF
Frequency
  • up to 220 MHz
DC
  • up to 10 A
AC
  • up to 10 A
Inductance
  • no
Temperature
  • yes
Power
  • no
Duty cycle
  • no
True RMS
  • yes
Backlight
  • no
PC connection
  • RS232
Diode test
  • yes
Analog bar graph
  • yes
Transistor check
  • no
AC Voltage
  • up to 700 V
Continuity test
  • yes
Battery Testing
  • no
