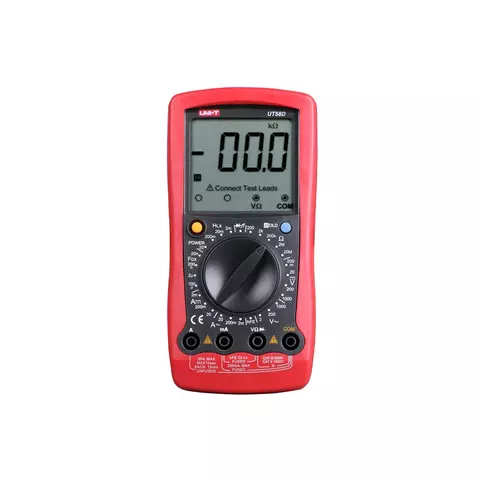

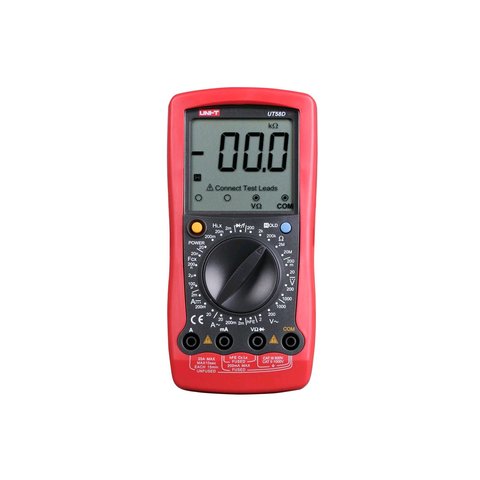

Digital Multimeter UNI-T UT58D
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Price coming soon
Overview
Video
Video
0.351 kg Warranty: 24 months
A digital multimeter for AC/DC current and voltage, resistance, capacitance, inductance measurements, and diode, continuity and transistor tests. Read more
Price coming soon
Description
This digital multimeter measures AC/DC current and voltage, resistance, capacitance, inductance, and tests diodes, continuity and transistors.
Manual
Download UNI-T UT58D Digital Multimeter User Manual (English version)
Features
- Functions:
- AC/DC current and voltage
- resistance
- capacitance
- inductance
- continuity test (with buzzer)
- diode test
- transistor test
- Data Hold function
- Manual ranging
- Sleep mode
- Low battery indication
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Comparative Specifications
| Model | UT58D | UT58E |
|---|---|---|
| Display | LCD 60 × 54 mm, max. 1999 | LCD 60 × 54 mm, max. 19999 |
| DC voltage, V | 200mV/20V/200V/1000V ±(0.5%+1) |
200mV/2V/20V/200V/1000V ±(0.05%+3) |
| AC voltage, V | 2V/200V/1000V ±(0.8%+3) |
2V/20V/200V/1000V ±(0.5%+10) |
| DC current, A | 2mA/200mA/20A ±(0.8%+1) |
2mA/200mA/20A ±(0.5%+5) |
| AC current, A | 2mA/200mA/20A ±(1%+3) |
20mA/200mA/20A ±(0.8%+10) |
| Resistance, Ω | 200Ω/2kΩ/200kΩ/2MΩ/20MΩ ±(0.8%+1) |
200Ω/2kΩ/20kΩ/2MΩ/200MΩ ±(0.5%+10) |
| Capacitance, F | 20nF/200nF/2µF/100µF ±(2.5%+5) |
2nF/20nF/2µF/20µF ±(3%+40) |
| Frequency, Hz | - | 20kHz ±(1.5%+5) |
| Inductance, H | 2mH/20mH/200mH/20H ±(2%+10) |
- |
| Temperature, ºC | - | -40ºC ~ 1000ºC ±(1%+30) |
| Sampling rate | 2-3x/s | |
| Power | 9V battery: NEDA 1604, 6F22 or 006P | |
| Dimensions, (H × W × D) mm | 179 × 88 × 39 | |
| Weight, g kg | 351 | |
Package Contents
- Multimeter UT58D
- Test lead
- Multi-purpose socket
- User manual
- Alligator clips
- Adapter for transistor testing
Note! Batteries are not included in the package.
Specifications
| Type |
|
| Range Selection |
|
| Digit Capacity |
|
| DC Voltage |
|
| AC Voltage |
|
| Resistance |
|
| Capacitance |
|
| DC |
|
| AC |
|
| Frequency |
|
| Inductance |
|
| Temperature |
|
| Power |
|
| Duty cycle |
|
| True RMS |
|
| Backlight |
|
| PC connection |
|
| Diode test |
|
| Analog bar graph |
|
| Transistor check |
|
| Continuity test |
|
| NCV |
|
| Battery Testing |
|
