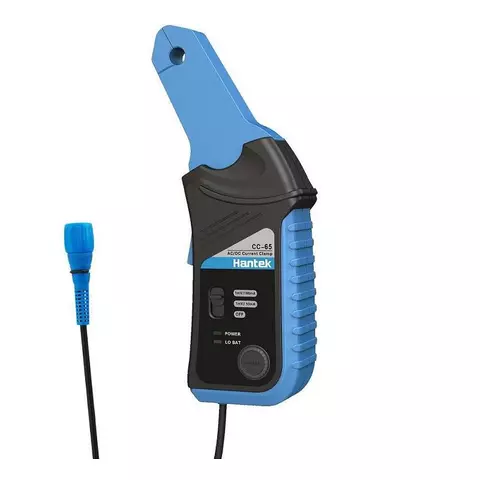

AC/DC Current Clamp Meter Hantek CC-65

id: 857706
AC/DC Current Clamp Meter Hantek CC-65
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 68.00
Notify
when in stock
Overview
1 kg Warranty: 12 months
AC/DC current clamp meter with up to 20 kHz AC/DC frequency range, 20 mA to 65 A DC effective measurement range. Used with Hantek, SIGLENT, UNI-T oscilloscopes.
USD 68.00
Notify
when in stock
Add to wishlist
Compare
Compare
USD 68.00
Notify
when in stock
Impossible to estimate the shipping cost
Description

Hantek CC-65 AC/DC current clamp meter is a transducer which allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms.

Features

  • AC/DC frequency range: up to 20 kHz
  • Effective measurement range: 20 mA to 65 A DC

Technical Specifications

DCA Range 1 mV /10mA ±(1.5%±5mA) 10mA ~ 20A
1mV/100mA ±(2%±20mA) 100mA ~ 40A;
±(4%±0.3A) 40A ~ 65A
ACA Range 1mV/10mA ±(2%±30mA) 100mA ~ 10A (40Hz ~ 2KHz);
±(4%±30mA) 100mA ~ 10A (2KHz ~ 10KHz);
±(6%±30mA) 100mA ~ 10A (10KHz ~ 20KHz);
±(8%±30mA) 10A ~ 15A (40Hz ~ 20KHz)
1mV/100mA ±(2%±30mA) 200mA ~ 40A (40Hz ~ 1KHz);
±(4%±30mA) 200mA ~ 40A (1KHz ~ 2KHz);
±(6%±30mA) 200mA ~ 40A (3KHz ~ 5KHz);
±(8%±0.3A) 40A ~ 65A (40Hz ~ 20KHz)
Captured Conductor Size 9 mm maximum
Low Battery Indicator red LED lighting
Operating Temperature 0℃to 50℃70% R.H.
Storage Temperature -20℃ to +70℃, 80% R.H.
Battery Type 9 V DC, NEDA 1604, 6F22,0006P
Battery Life 100 hours typical with alkaline
Dimensions (H × W × D) 195 × 70 × 33 mm
Weight 250 g typical
Output Supplied with coil cable with straight banana plug or BNC plug.

Compatibility

AC/DC current clamp meter is to be used with digital oscilloscopes:
  • Hantek DSO1060,
  • Hantek DSO1062B,
  • Hantek DSO1102B,
  • Hantek DSO1200,
  • Hantek DSO1202B,
  • Hantek DSO1600*,
  • Hantek DSO1600H*,
  • Hantek DSO8060,
  • Hantek DSO8202E,
  • SIGLENT SHS1062,
  • SIGLENT SHS1102,
  • SIGLENT SHS806,
  • SIGLENT SHS810,
  • UNI-T UT1025C,
  • UNI-T UTD1025CL,
  • UNI-T UTD1050CL,
  • UNI-T UTD1102C,
  • UNI-T UTD1025DL,
  • UNI-T UTD1050DL.
Read more
Description

Hantek CC-65 AC/DC current clamp meter is a transducer which allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms.

Features

  • AC/DC frequency range: up to 20 kHz
  • Effective measurement range: 20 mA to 65 A DC

Technical Specifications

DCA Range 1 mV /10mA ±(1.5%±5mA) 10mA ~ 20A
1mV/100mA ±(2%±20mA) 100mA ~ 40A;
±(4%±0.3A) 40A ~ 65A
ACA Range 1mV/10mA ±(2%±30mA) 100mA ~ 10A (40Hz ~ 2KHz);
±(4%±30mA) 100mA ~ 10A (2KHz ~ 10KHz);
±(6%±30mA) 100mA ~ 10A (10KHz ~ 20KHz);
±(8%±30mA) 10A ~ 15A (40Hz ~ 20KHz)
1mV/100mA ±(2%±30mA) 200mA ~ 40A (40Hz ~ 1KHz);
±(4%±30mA) 200mA ~ 40A (1KHz ~ 2KHz);
±(6%±30mA) 200mA ~ 40A (3KHz ~ 5KHz);
±(8%±0.3A) 40A ~ 65A (40Hz ~ 20KHz)
Captured Conductor Size 9 mm maximum
Low Battery Indicator red LED lighting
Operating Temperature 0℃to 50℃70% R.H.
Storage Temperature -20℃ to +70℃, 80% R.H.
Battery Type 9 V DC, NEDA 1604, 6F22,0006P
Battery Life 100 hours typical with alkaline
Dimensions (H × W × D) 195 × 70 × 33 mm
Weight 250 g typical
Output Supplied with coil cable with straight banana plug or BNC plug.

Compatibility

AC/DC current clamp meter is to be used with digital oscilloscopes:
  • Hantek DSO1060,
  • Hantek DSO1062B,
  • Hantek DSO1102B,
  • Hantek DSO1200,
  • Hantek DSO1202B,
  • Hantek DSO1600*,
  • Hantek DSO1600H*,
  • Hantek DSO8060,
  • Hantek DSO8202E,
  • SIGLENT SHS1062,
  • SIGLENT SHS1102,
  • SIGLENT SHS806,
  • SIGLENT SHS810,
  • UNI-T UT1025C,
  • UNI-T UTD1025CL,
  • UNI-T UTD1050CL,
  • UNI-T UTD1102C,
  • UNI-T UTD1025DL,
  • UNI-T UTD1050DL.
Specifications
AC/DC Current Clamp Add-on is compatible with the following models of Digital Oscilloscopes
  • Hantek DSO1060
  • Hantek DSO1062B
  • Hantek DSO1102B
  • Hantek DSO1200
  • Hantek DSO8060
  • Hantek DSO1202B
  • Hantek DSO1600*
  • Hantek DSO1600H*
  • Hantek DSO8060
  • Hantek DSO8202E
  • SIGLENT SHS1062
  • SIGLENT SHS1102
  • SIGLENT SHS806
  • SIGLENT SHS810
  • SIGLENT SHS810
  • UNI-T UTDM 11025C (UT1025C)
  • UNI-T UTDM 11025CL (UTD1025CL)
  • UNI-T UTDM 11050CL (UTD1050CL)
  • UNI-T UTDM 11102C (UTD1102C)
  • UNI-T UTD1025DL
  • UNI-T UTDM11050DL (UTD1050DL)
