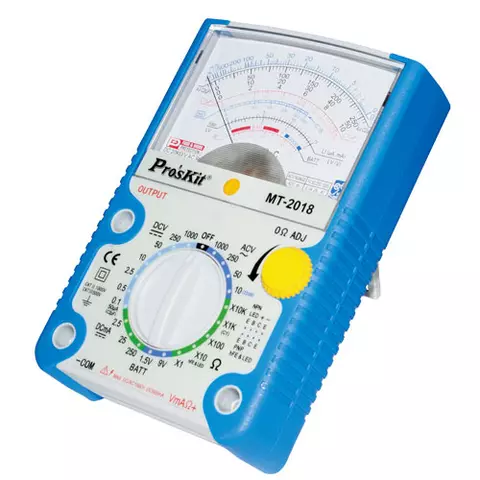

Analog Multimeter Pro'sKit MT-2018

id: 840012
0.5 kg Warranty: 12 month (s)
Analog multimeter with overload protection for AC/DC voltage, DC current, resistance, capacitance measuring, and battery/transistor check.
Discontinued
Contact
sales team
Discontinued
Contact
sales team
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Delivery
Payment
Warranty
Overview

Pro'sKit MT-2018 is a analog multimeter with overload protection for measuring AC/DC voltage, DC current, resistance, capacitance and battery/transistor check.

Pro'sKit MT-2018 Analog Multimeter User Manual

Download Pro'sKit MT-2018 Analog Multimeter User Manual

Pro'sKit MT-2018 Analog Multimeter Features

  • Mirrored aluminum dial plate
  • 20 kΩ/V DC and 9 kΩ/V AC input sensitivity
  • Overload protection
  • Transistor hFE test
  • Battery test
  • Robust protective holster

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Pro'sKit MT-2018 Analog Multimeter Technical Specifications

DC voltage 0-0.1-2.5-10-50-250-1000 V
AC voltage 0-10-50-250-1000 V
DC current 0-0.05-2.5-25-250 mA
Resistance 1 / 10 / 100 / 1K / 10 KΩ
Capacitance 0.025-0.25-25 uF (C2), 2000 uF (C1)
Transistor check hFE: 0-1000
Power 1.5V AA battery and 9V (NEDA1604) battery
Dimensions 160 × 105 × 40 mm
Weight 380 g

Pro'sKit MT-2018 Analog Multimeter Package Contents

  • Pro'sKit MT-2018 multimeter (1 pc.)
  • Test leads (1 pair)
  • User manual (1 pc.)
Specifications
Type
  • analog
Measured Values
  • DC voltage
  • AC voltage
  • DC
  • resistance
  • capacitance
Additional Functions
  • transistors test
  • battery test
Range Selection
  • manual range
DC Voltage
  • up to 1000 V
AC Voltage
  • up to 1000 V
AC
  • does not measure the AC
Frequency
  • does not measure the frequency
Inductance
  • no
Temperature
  • no
Power
  • no
Duty cycle
  • no
True RMS
  • no
Backlight
  • no
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • no
Transistor check
  • yes
Continuity test
  • no
DC
  • up to 250 mA
Digit Capacity
  • analog
Resistance
  • up to 10 kOhm
Capacitance
  • up to 2000 μF
NCV
  • no
Battery Testing
  • yes
