Overview
0.45 kg Warranty: 6 months

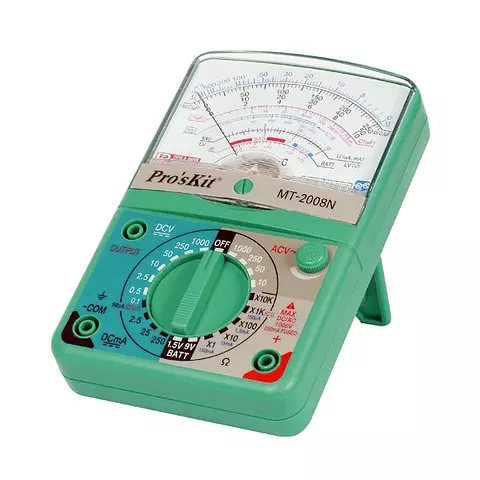

ProsKit MT – 2008N - analog multimeter with basic function package and capacitance measurement function.
Discontinued
Contact
sales team
Compare
Compare
Discontinued
Contact
sales team
Impossible to estimate the shipping cost
Description

ProsKit MT – 2008N - analog multimeter with basic function package and capacitance measurement function.

Pro'sKit MT-2008N Analogue Multimeter Features

  • Durable reliable vibration-proof and patented protection circuit
  • Double-side glass epoxy through hole resist inish
  • Protective function preventing mixed measurement
  • Resistance, current and low-range voltage
  • Manual ranging
  • Overload protection

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Pro'sKit MT-2008N Analogue Multimeter Technical Specifications

DC voltage 0.1/0.5/2.5/10/50/250/1000V (20kΩ/V)
DC current

50µA
2.5/25/250mA

AC voltage 10/50/250/1000V
Resistance

1/10/100Ω
1/10kΩ

Capacitance C1(Rx1K): 2000µF,
C2: 0.025/025/25µF
Power 1.5/9V battery
Weight (with battery)

395g

Read more
Description

ProsKit MT – 2008N - analog multimeter with basic function package and capacitance measurement function.

Pro'sKit MT-2008N Analogue Multimeter Features

  • Durable reliable vibration-proof and patented protection circuit
  • Double-side glass epoxy through hole resist inish
  • Protective function preventing mixed measurement
  • Resistance, current and low-range voltage
  • Manual ranging
  • Overload protection

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Pro'sKit MT-2008N Analogue Multimeter Technical Specifications

DC voltage 0.1/0.5/2.5/10/50/250/1000V (20kΩ/V)
DC current

50µA
2.5/25/250mA

AC voltage 10/50/250/1000V
Resistance

1/10/100Ω
1/10kΩ

Capacitance C1(Rx1K): 2000µF,
C2: 0.025/025/25µF
Power 1.5/9V battery
Weight (with battery)

395g

Specifications
Type
  • analog
Measured Values
  • DC voltage
  • AC voltage
  • DC
  • resistance
  • capacitance
Additional Functions
  • acoustic continuity test
Range Selection
  • manual range
DC Voltage
  • up to 1000 V
AC Voltage
  • up to 1000 V
AC
  • does not measure the AC
Capacitance
  • does not measure the capacitance
Frequency
  • does not measure the frequency
Inductance
  • no
Temperature
  • no
Power
  • no
Duty cycle
  • no
True RMS
  • no
Backlight
  • no
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • no
Transistor check
  • yes
Continuity test
  • yes
DC
  • up to 250 mA
Digit Capacity
  • analog
Resistance
  • up to 10 kOhm
Battery Testing
  • yes
