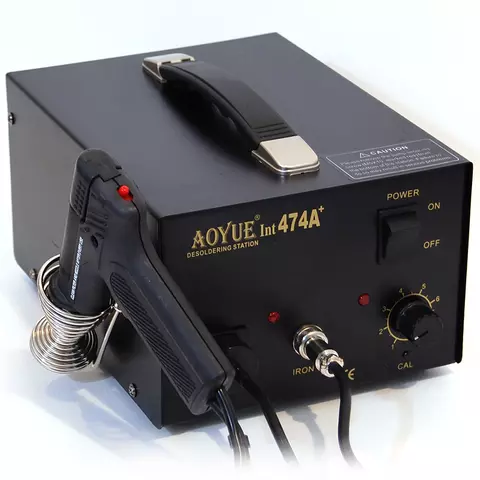

AOYUE 474A+ Desoldering Station (110 V)
id: 814121
AOYUE 474A+ Desoldering Station (110 V)
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
USD 110.00
Overview
Video
8.5 kg 110 V Warranty: 12 months
Compact unit with air cylinder type strong suction vacuum pump. Suited for multi-layered PCB reworking. The heating element and tip are designed closely to guarantee enough temperature during desoldering Read more
USD 110.00
Buy wholesale and save
Description
AOYUE 474A+ Desoldering Station Features
- Compact unit with air cylinder type strong suction vacuum pump
- Suited for multi-layered PCB reworking
- The heating element and tip are designed closely to guarantee enough temperature during desoldering
AOYUE 474A+ Desoldering Station Technical Specifications
| Power Input | 110 V |
| Power Consumption | 70 W |
| Temperature Range | 150 to 380°C |
| Heating Element | PTC Heating Element |
| Output Voltage | 24 V |
| Tip to Ground Resistance | below 2 Ohms |
| Tip to Ground Potential | below 2 mV |
| Suction Flow | 15 l/min (max) |
| Vacuum Generator | Double Cylinder |
| Vacuum Pressure | 600 mm Hg |
| Station Dimensions, W × H × D | 188 × 127 × 244 |
Desoldering Gun Video
AOYUE 474A+ Desoldering Station Package Content
- 474 Station
- Desoldering Gun
- Filter pads 6pcs
- Silicone Grease
- Desoldering gun holder
- Filter pipe
- Nozzle cleaning pin
- Power cord
Specifications
| Design type |
|
| Soldering Iron Power |
|
| Gun power |
|
Video
