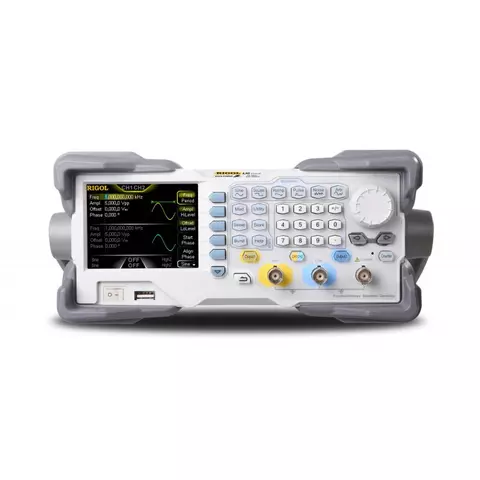

Arbitrary Waveform / Function Generator RIGOL DG1062Z

id: 844215
Arbitrary Waveform / Function Generator RIGOL DG1062Z
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
USD 903.00
Contact
sales team
Overview
8.5 kg 110, 220 V Warranty: 36 months
Dual-channel waveform generator with 60 MHz max. frequency, 200 MSa/s sample rate, and 8 Mpts (standard) of arbitrary waveform memory.
USD 903.00
Contact
sales team
Add to wishlist
Compare
Compare
USD 903.00
Contact
sales team
Impossible to estimate the shipping cost
Description

RIGOL DG1062Z is a multi-functional arbitrary waveform / function generator which adopts innovative SiFi (Signal Fidelity) technology for stable, high-precision, pure and low distortion signals. The excellent system features, user friendliness and versatile functions combination makes this arbitrary waveform / function generator a perfect solution for IC, serial bus and in-circuit function tests, simulation of sensors and natural environment signals. RIGOL DG1062Z dual channel arbitrary waveform / function generator has an intuitive user interface and simple front panel layout and instructions.

RIGOL DG1062Z Arbitrary Waveform / Function Generator Features

  • SiFi (Signal Fidelity) technology: generate arb waveform point-by-point, restore signal distortionless, precisely adjustable sample rate and low jitter (200 ps)
  • 2 channel output
  • 5 standard waveforms and 160 stored arbitrary waveforms:
    • Sine
    • Pulse
    • Square
    • Ramp
    • Noise
  • 200 MSa/s of sample rate, 14 bits of vertical resolution
  • Versatile modulation and variety of waveforms
    • AM
    • FM
    • PM
    • ASK
    • FSK
    • PSK
    • PWM
    • Sweep
    • Burst
  • Convenient arbitrary waveform editing interface
  • Standard waveform summing function
  • Standard interfaces: USB host and device, LAN
  • 3.5 inches TFT color display

RIGOL DG1062Z Arbitrary Waveform / Function Generator Technical Specifications

Standard waveforms
Waveforms Sine, Square, Ramp, Pulse, Noise, Arb
Sine 1 μHz to 60 MHz
Square 1 μHz to 25 MHz
Pulse 1 μHz to 25 MHz
Ramp 1 μHz to 1 MHz
Harmonic 1 μHz to 20 MHz
White noise 60 MHz
Arbitrary waveform 1 μHz to 20 MHz
Max. output frequency 60 MHz
Sample rate 200 MSa/s
Modulation AM, FM, PM, ASK, FSK, PSK, PWM
Square wave characteristic
Rise/fall time <10 ns
Overshoot <5%
Duty cycle 0.01% to 99.99% (limited by the current frequency setting)
Jitter ≤5 MHz 2 ppm + 200 ps
Pulse wave characteristics
Pulse width ≥16 ns (limited by the current frequency setting)
Rising/falling Edge ≥10 ns
Overshoot <5%
Jitter ≤5 MHz 2 ppm + 200 ps
Ramp wave characteristics
Linearity ≤1% of peak output (typical, 1 kHz, 1 VPP, 100% symmetry)
Symmetry 0% to 100%
Arbitrary wave characteristics
Waveform length 8 pts to 2 Mpts (16 Mpts optional)
Vertical resolution 14 bits
Sample rate 200 MSa/s
Minimum rising/falling time <5 ns
Jitter (RMS) ≤5 MHz 2 ppm + 200 ps
Output characteristics
Amplitude ≤10 MHz: 2.5 mVpp to 10 Vpp
≤30 MHz: 2.5 mVpp to 5.0 Vpp
≤60 MHz: 2.5 mVpp to 2.5 Vpp
Amplitude accuracy
(1 kHz)
± 1% of the setting + 1 mV
Amplitude flatness (sine wave, 2.5 Vpp) ≤10 MHz: ±0.1 dB
≤60: MHz ±0.2 dB
DC offset
Range ±5 Vpk ac + dc
Accuracy 1% of setting + 5mV + 0.5% of amplitude
AM modulation
Carrier waveforms Sine, Square, Ramp, Arb (except DC)
Source Internal / external
Modulating waveforms Sine, Square, Ramp, Noise, Arb
Depth 0% to 120%
Frequency 2 mHz to 1 MHz
FM modulation
Carrier waveforms Sine, Square, Ramp, Arb (except DC)
Source Internal / external
Modulating waveforms Sine, Square, Ramp, Noise, Arb
Modulating frequency 2 mHz - 1 MHz
PM modulation
Carrier waveforms Sine, Square, Ramp, Arb (except DC)
Source Internal / external
Modulating waveforms Sine, Square, Ramp, Noise, Arb
Phase deviation 0° to 360°
ASK modulation
Carrier waveforms Sine, Square, Ramp, Arb (except DC)
Source Internal / external
Modulating waveforms 50% duty cycle square
Key Frequency 2 mHz to 1 MHz
FSK modulation
Carrier waveforms Sine, Square, Ramp, Arb
Source Internal / external
Modulating waveforms 50% duty cycle square
Frequency 2 mHz to 1 MHz
PWM modulation
Carrier waveforms Pulse
Source Internal / external
Modulating waveforms Sine, Square, Ramp, Noise, Arb
Width deviation 0% to 100% of the pulse width
External Modulation Input
Input range 75 mVRMS to ±5 Vac + dc
Input bandwidth 50 kHz
Input impedance 1000 Ω
General specification
Display 3.5-inch TFT LCD (320 × 240 pixels)
Interfaces USB Host, USB Device, LAN
Power 100 V ~ 240 V (45 Hz ~ 440 Hz), CATII
Dimentions 261.5 × 112 × 318.4 mm
Weight 4.5 kg

Video

Youtube video

Data Sheet

Download RIGOL RIGOL DG1062Z Data Sheet.

RIGOL DG1062Z Arbitrary Waveform / Function Generator Package Contents

  • Waveform generator RIGOL DG1062Z (1 pc.)
  • USB cable (1 pc.)
  • BNC cable (1 pc.)
  • Power cord (1 pc.)
Read more
