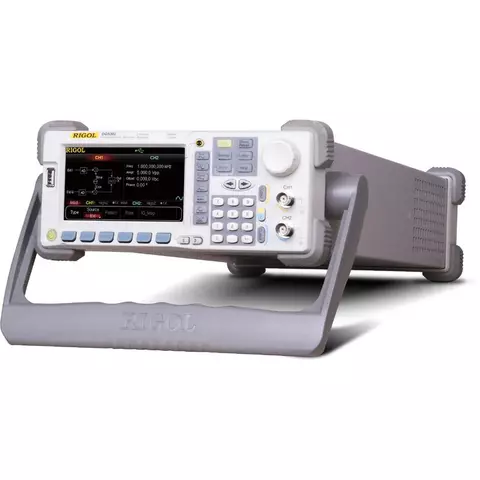

Arbitrary Waveform / Function Generator RIGOL DG5072

id: 834375
Arbitrary Waveform / Function Generator RIGOL DG5072
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 3024.00

Overview

8.5 kg 110, 220 V Warranty: 36 months
Dual-channel generator with 70 MHz bandwidth, 1 GSa/s sample rate, 14 bit vertical resolution and 128 million points of arbitrary waveform memory. Read more
USD 3024.00
USD 3024.00
Impossible to estimate the shipping cost

You may also like

Description

RIGOL DG5072 is a multipurpose arbitrary waveform / function generator that combines different capabilities including function generation, arbitrary waveform generation, IQ baseband source/IQ IF source, frequency hopping source (optional) and pattern generation (optional). RIGOL DG5072 is the true independent, dual-channel model that provide adjustable phases between the two channels.

RIGOL DG5072 adopts Direct Digital Synthesizer (DDS) technology, which providing stable, precise, low distortion signals.

Additional Information

Download RIGOL DG5072 arbitrary waveform / function generator user manual

Download RIGOL DG5072 Data Sheet.

RIGOL DG5072 Arbitrary Waveform / Function Generator Features

  • 70 MHz bandwidth
  • 1 GSa/s waveform output
  • 14 bit vertical resolution
  • 128 million points of arbitrary waveform memory
  • Built in standard modulations including IQ modulation for digital baseband generation including QPSK and QAM formats
  • Standard interfaces including LXI-C (Ethernet), USB device and host, and GPIB
  • Optional accessories including output amplifier (PA-1011), digital generator (DG-POD-A), and frequency hopping capability

RIGOL DG5072 Arbitrary Waveform / Function Generator Technical Specifications

Standard waveforms
Waveforms Sine, Square, Ramp, Pulse, Noise
and arbitrary waveforms
Sine 1 μHz to 70 MHz
Square 1 μHz to 70 MHz
Pulse 1 μHz to 50 MHz
Ramp 1 μHz to 3 MHz
Noise 250 MHz bandwidth
Resolution 1 μHz
Sine wave spectral purity
Harmonic distortion Typical (0 dBm) ≤70 MHz: <-45 dBc
Total harmonic distorion <0.5% (10 Hz to 20 kHz, 0 dBm)
Spurious (non-harmonic) Typical (0 dBm) ≤70 MHz: <-50 dBc
Phase noise Typical (0 dBm, 10 kHz deviation) 10 MHz: <-110 dBc
Square wave characteristic
Rise/fall time Typical Value (1Vpp) <4 ns
Overshoot Typical Value (1Vpp) <5%
Duty cycle ≤10 MHz: 20.0% to 80.0%
10 MHz to 40 MHz: 40.0% to 60.0%
>40 MHz: 50.0% (fixed)
Non-symmetry 1% of period +5 ns
Jitter ≤30 MHz: 10ppm+500 ps
Pulse wave characteristics
Period 20 ns to 1000000 s
Pulse width 4 ns to 1000000 s
Overshoot Typical Value (1 Vpp) <5%
Jitter Typical value (1 Vpp) 10 ppm+500 ps
Arbitrary wave characteristics
Waveform length
  • Normal mode: 2 to 16M points
  • Play mode: 2 to 128M points
Vertical resolution 14 bits (including sign)
Sample rate
  • Normal mode: 1G Sa/s (fixed)
  • Play mode: ≤1G Sa/s (variable)
Minimum rising /falling time Typical value (1Vpp) ≤3 ns
Jitter (RMS) 3 ns
Non-volatile storage 4 waveforms
Output characteristics
Amplitude 5 mVpp to 10 Vpp
Amplitude accuracy
Typical (1 kHz Sine, 0 V Deviation, >10 mVpp, Auto)
± 1% of setting ± 1 mVpp
Amplitude flatness (relative to 100 kHz, 1.25 Vpp Sine wave, 50Ω) <10 MHz: ±0.1 dB
10 MHz to 60 MHz: ±0.2 dB
60 MHz to 70 MHz: ±0.4 dB
Offset
Range ±5 Vpk ac + dc
Accuracy 1% of setting + 5mV + 0.5% of amplitude
AM modulation
Carrier waveforms Sine, Square, Ramp, Arb (except DC)
Source Internal / external
Modulating waveforms Sine, Square, Ramp, Noise, Arb (2 mHz to 50 kHz)
Depth 0% to 120%
FM modulation
Carrier waveforms Sine, Square, Ramp, Arb (except DC)
Source Internal / external
Modulating waveforms Sine, Square, Ramp, Noise, Arb (2 mHz to 50 kHz)
PM modulation
Carrier waveforms Sine, Square, Ramp, Arb (except DC)
Source Internal / external
Modulating waveforms Sine, Square, Ramp, Noise, Arb (2 mHz to 50 kHz)
Phase deviation 0° to 360°
ASK modulation
Carrier waveforms Sine, Square, Ramp, Arb (except DC)
Source Internal / external
Modulating waveforms Square with 50% duty cycle (2 mHz to 1 MHz)
FSK modulation
Carrier waveforms Sine, Square, Ramp, Arb (except DC)
Source Internal / external
Modulating waveforms Square with 50% duty cycle (2 mHz to 1 MHz)
PSK modulation
Carrier waveforms Sine, Square, Ramp, Arb (except DC)
Source Internal / external
Modulating waveforms Square with 50% duty cycle (2 mHz to 1 MHz)
PWM modulation
Carrier waveforms Pulse
Source Internal / external
Modulating waveforms Sine, Square, Ramp, Noise, Arb (2 mHz to 50 kHz)
Width deviation 0% to 100% of Pulse width
Sweep
Carrier waveforms Sine, Square, Ramp, Arb (except DC)
Type Linear, log or step
Direction up or down
Sweep time 1 ms to 300 s
Source Internal/ external/ manual
Burst
Waveforms Sine, Square, Ramp, Pulse, Noise, Arb (except DC)
Burst count 1 to 1 000 000 or Infinite
Start phase 0° to 360°
Internal period 1 μs to 500 s
Gate source External trigger
Trigger source Internal/ external/ manual
General specification
Display 480 horizontal × 272 vertical resolution
Interafaces USB host (2), USB device, GPIB, LAN
Power 100 to 240 V AC RMS, 45-65Hz
Less than 125 W
Dimentions 230 × 106 × 501 mm
Weight 5.8 kg

RIGOL DG5072 Arbitrary Waveform / Function Generator Package Contents

  • RIGOL DG5072 generator (1 pc.)
  • Power cord (1 pc.)
  • USB cable (1 pc.)
  • BNC cable (1 pc.)
  • SMB(F) to BNC(M) cable (1 pc.)

RIGOL DG5072 Arbitrary Waveform / Function Generator Optional Accessories

  • DG5-FH frequency hopping module
  • DG-POD-A logic signal output module
  • PA1011 power amplifier

Specifications

Channels
  • dual channel
Max. signal frequency
  • 70 MHz
