Automotive Diagnostics Oscilloscope Set Hantek DSO3064 Kit VII
id: 857704
Automotive Diagnostics Oscilloscope Set Hantek DSO3064 Kit VII
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 650.00
Overview
5 kg Warranty: 12 months
4-channel automotive digital oscilloscope with 60 MHz bandwidth, 200 MS/s real-time sampling rate, 16 MB memory + a set of diagnostics tools. Read more
USD 650.00
Description
Hantek DSO3064 Kit VII is a automotive digital oscilloscope with a set of diagnostics tools.
Oscilloscope Features
- 4 Channels and EXT trigger.
- 60 MHz Bandwidth.
- 200 MS/s real-time sampling rate.
- 10k-16M memory depth per Channel.
- Frequency Counter.
- FFT spectrum analysis.
- 8--36V range of input voltage, suitable for vehicle power test.
- USB 2.0 interface plug and play, LAN optional.
- More than 20 kinds of automatic measurement and PASS/FAIL check function, which is suitable for engineering application.
- Excellent industrial design, interfaces are similar to desktop oscilloscopes.
- Software support: Windows NT, Windows 2000, Windows XP, Windows VISTA, Windows 7, Windows 8.
- Supply DEMO code (VC,VB,LABVIEW) and technical support.
Technical Specifications
| Hantek DSO3064 Vertical System | |
|---|---|
| Analog Channels | 4 |
| Bandwidth | 60 MHz (-3dB) |
| Rise Time | 5.8ns |
| Input Impedance | Resistance: 1MΩ ; Capacitance: 25 pF |
| Input Sensitivity | 10 mV/div to 5 V/div |
| Input Coupling | AC/DC/GND |
| Vertical Resolution | 8 bits |
| Memory Depth | 10 KB - 16 MB/CH |
| Maximum Input | 400V (DC+AC Peak) |
| Hantek DSO3064 Horizontal System | |
| Real-Time Sampling Rate | 200 MS/s |
| Time Base Range | 5 ns/div to 1000 s/div (1-2-5 sequences) |
| Time Base Precision | ±50 ppm |
| Trigger System | |
| Source | CH1, CH2, CH3, CH4, EXT |
| Mode | Edge, Pulse, Video, Alternative |
| Voltage Measurement | Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle |
| Cursor Measurements | Horizontal ,Vertical, Track, Auto Measure Modes |
| Waveform Signal Processing | +,- , x,÷, FFT, Invert |
| FFT | Rectangular, Hanning, Hamming, Blackman Window |
| General Specifications | |
| Interface | USB 2.0 (LAN Optional) |
| Power Source | 8-36 V |
| Size | 255 x 190 x 45 mm |
| Weight | 1 kg |

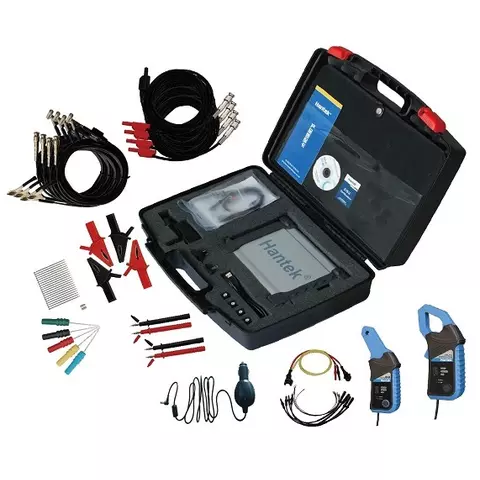

Package Contents
- Hantek DSO3064 Digital Oscilloscope – 1 pc.
- Hantek PP-80 Oscilloscope Probe – 1 pc.
- Hantek HT30A Auto Test Cable – 4 pcs.
- Hantek HT25 Auto High-pressure Ignition Probe – 4 pcs.
- Hantek HT201 20:1 Attenuator – 4 pcs.
- Hantek HT18A Large Dolphin/Gator Clip – 4 pcs.
- Hantek HT19 Multimeter Probe – 4 pcs.
- Hantek HT307 Acupuncture Probe Set – 1 pc.
- Hantek HT308 Coil-on-Plug Extension Cord (with grounding cord) – 4 pcs.
- Hantek HT310 Auto Power Adapter – 1 pc.
- Hantek CC-65A AC/DC Current Clamp – 1 pc.
- Hantek CC-650A AC/DC Current Clamp – 1 pc.
- Hantek HT301 Break Out Leads – 1 pc.
