Backlit Soldering Iron YIHUA 947-V
id: 901983
Backlit Soldering Iron YIHUA 947-V
Overview
Description
Specifications
Delivery
Payment
Warranty
Price coming soon
Overview
Compact 60 W soldering iron with LED illumination and adjustable temperature. Designed for both lead-based and lead-free solders. Read more
Price coming soon
Description

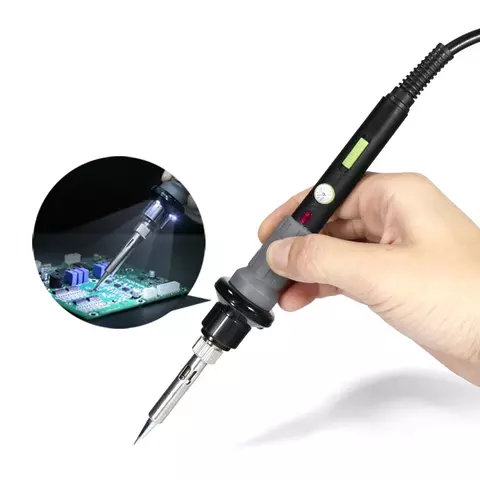

YIHUA 947-V is a compact 60W backlit soldering iron with adjustable temperature. The temperature controller provides the temperature setting in the range of 200-450 °C. An ergonomic handle with a protective ring guarantees comfortable and safe usage. The tool is designed for both lead-based and lead-free solders.
Features
- Power: 60 W.
- Three LEDs built into the soldering iron body to illuminate the working area.
- Adjustable temperature.
- Ceramic heater.
- Heating LED indicator on the handle.
- Compatible with 960 series soldering iron tips.
Technical Specifications
| Power supply voltage | AC 220 V-240 V, 50 Hz |
| Power | 60 W |
| Temperature range | 200°C~450°C |
| Temperature control type | sensor temperature control |
| Heating element | ceramic |
| Temperature stability | ±2°C |
| Backlight | three LEDs |
| Working temperature | 0°C~40°C |
| Storage temperature | -20°C~80°C |
| Storage relative humidity | 35%~45% |
| Tip-to-ground resistance | < 2 Ω |
Soldering iron & tip length |
20 cm |
| Weight | 0.3 kg |
Package Contents
- Backlit Soldering Iron YIHUA 947-V — 1 pc.
- Stand with Holder — 1 pc.
- Soldering Tip Cleaner — 1 pc.
- Soldering Iron Tips — 5 pcs.
- Hot Tweezers — 1 pc.
- Solder — 1 pc.
- Desoldering Pump — 1 pc.
- Case — 1 pc.
Specifications
| Power Consumption |
|
| Power Supply |
|
| Temperature stabilization |
|
| Controls |
|
